Annotation • ggcorrheatmap

library(ggcorrheatmap)
library(dplyr)
library(ggplot2)
library(patchwork)

Row and column annotation is added by passing data frames to the annot_rows_df and annot_cols_df arguments. There must be either row names or a column named .names containing the names of the rows/columns that are to be annotated. The remaining columns are used for annotation.

row_annot <- data.frame(.names = colnames(mtcars), a = rnorm(ncol(mtcars)))
col_annot <- data.frame(b = sample(letters[1:3], ncol(mtcars), TRUE))
rownames(col_annot) <- colnames(mtcars)

ggcorrhm(mtcars, annot_rows_df = row_annot, annot_cols_df = col_annot)

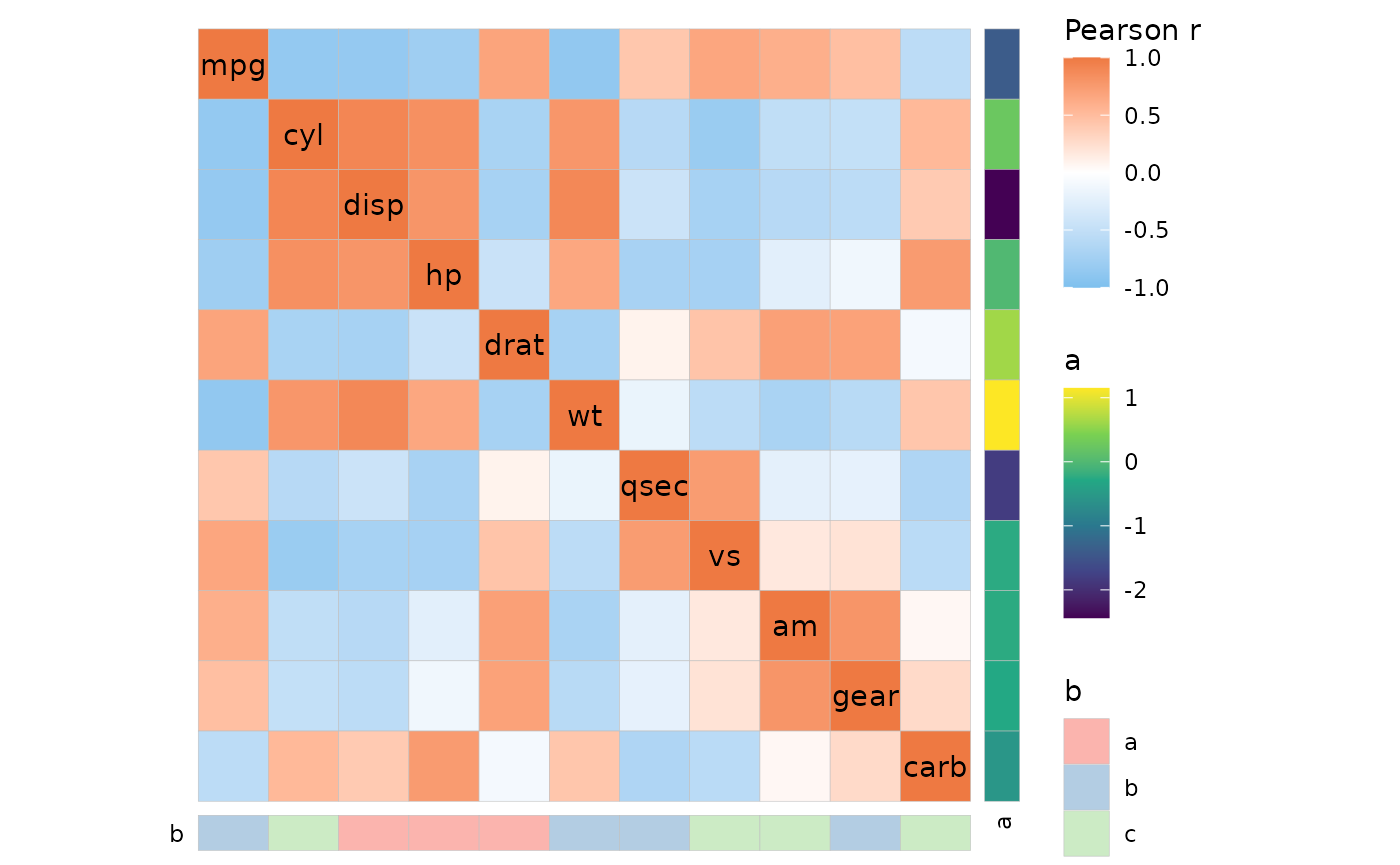

Correlation heatmap of mtcars. To the right and below are annotations half the width of a heatmap cell. The row annotation is continuous with the viridis scale and the column annotation is categorical with the values a, b, and c and the Brewer Pastel1 palette.

Controlling colours

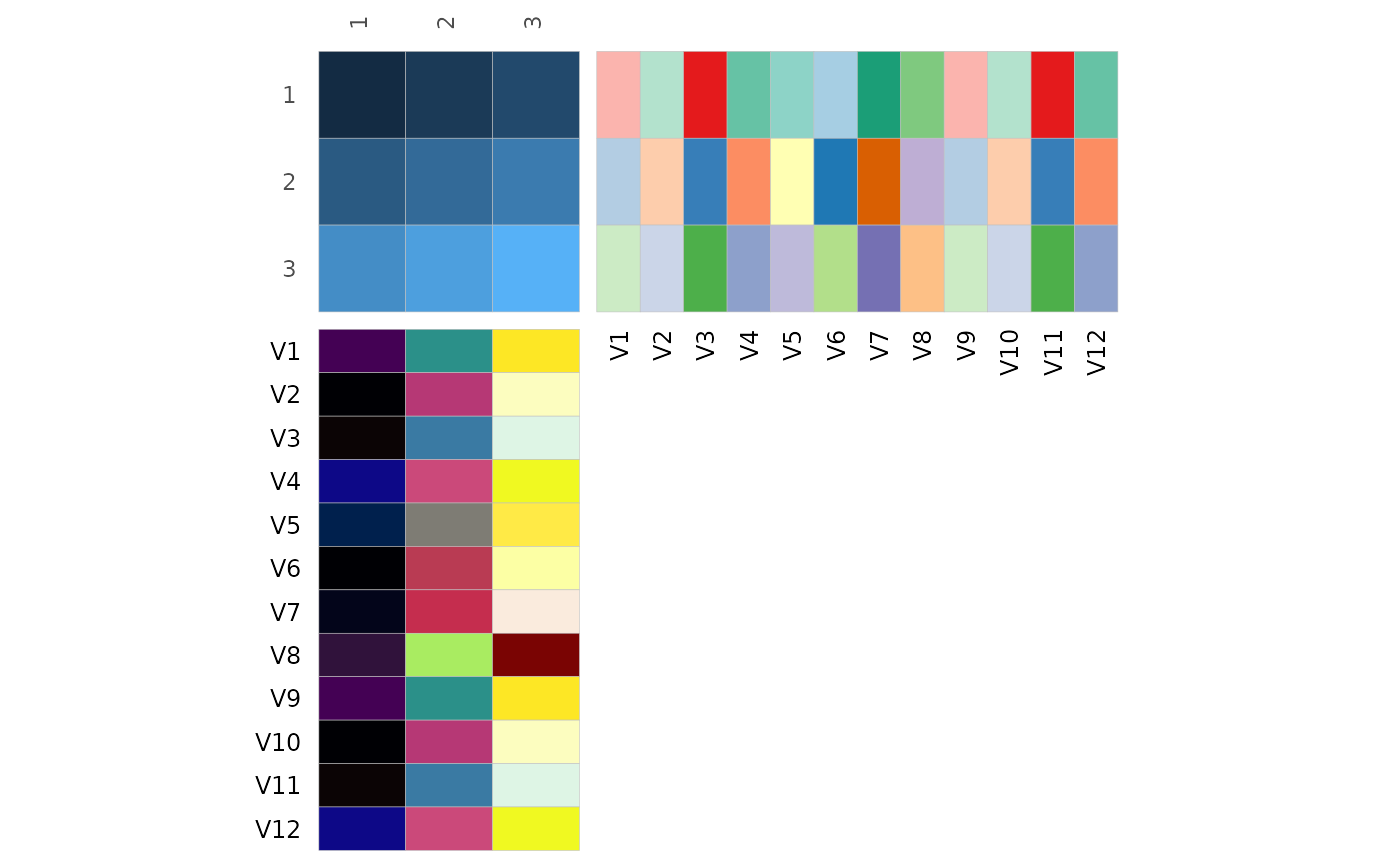

The colours used for annotation are selected in order from eight brewer palettes (categorical annotations, ggplot2::scale_fill_brewer()) or eight viridis options (continuous annotations, ggplot2::scale_fill_viridis_c()), starting again from the beginning if there are more than eight annotations.

mat_in <- matrix(1:9, nrow = 3, ncol = 3, byrow = TRUE)
# Works without rownames or '.names' column as they are by default set to the same numbers here
row_annot <- as.data.frame(replicate(12, letters[1:3]))
col_annot <- as.data.frame(replicate(12, 1:3))
gghm(mat_in, annot_rows_df = row_annot, annot_cols_df = col_annot,
     # Hide the legends
     legend_order = NA)

The colours can be changed by passing a named list of ggplot2 fill scales or strings specifying brewer palettes or viridis options to the annot_rows_col and annot_cols_col arguments. Annotations not included in the list will get the default colours. When supplying a scale object, the order of the legends may change (by default the main heatmap annotation is first, followed by row annotations in order and column annotations in order). The order can be adjusted by using the guide argument of the scale functions, e.g. guide = ggplot2::guide_legend(order = 3).

# Make annotation with eight columns, half categorical and half continuous
col_annot <- as.data.frame(replicate(8, 1:8)) %>%
  rename_with(function(x) {paste(c("custom", "default"), rep(1:4, each = 2), sep = "")}) %>%
  mutate(across(1:4, as.character))
col_annot$.names <- colnames(mtcars)[1:8]

col_annot_fill <- list(custom1 = "Oranges",
                       custom2 = scale_fill_discrete(guide = "none"),
                       custom3 = "mako",
                       custom4 = scale_fill_continuous(guide = "none"))
ggcorrhm(mtcars[, 1:8], annot_cols_df = col_annot,
         annot_cols_col = col_annot_fill, legend_order = NA)

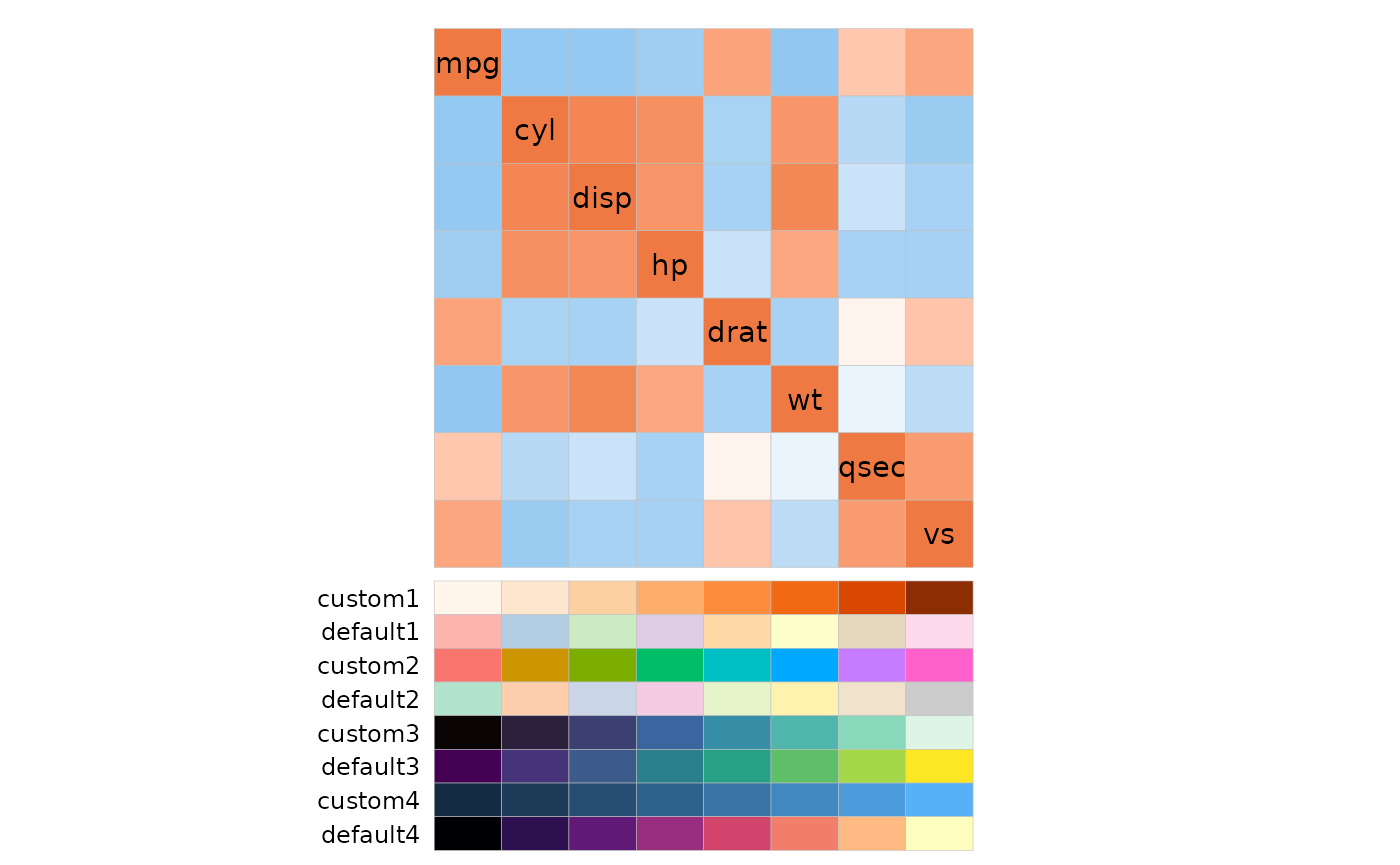

Correlation heatmap of eight columns from mtcars. Below the heatmap are eight annotation rows, the first four categorical and the last four continuous. Their names alternate between custom1, custom2, ... and default1, default2, .... The custom ones use user-specified colours while the default ones use the colour schemes in the annotations of the previous heatmap.

Annotation positioning

The annot_rows_side and annot_cols_side arguments control which side the annotation should be placed on (‘left’ or ‘right’ for row annotations, ‘top’ or ‘bottom’ for column annotation). A triangular layout (for symmetric matrices) limits the positions to the non-empty sides.

set.seed(123)
annot <- data.frame(.names = colnames(mtcars), annot1 = rnorm(ncol(mtcars)))

plt1 <- gghm(cor(mtcars), annot_rows_df = annot, annot_cols_df = annot,
             annot_rows_side = "left", annot_cols_side = "top",
             annot_cols_names_side = "right") +
  # Adjust legend position and margins
  theme(legend.position = "left",
        plot.margin = margin(10, 50, 30, 10))
plt2 <- gghm(cor(mtcars), annot_rows_df = annot, annot_cols_df = annot,
             annot_rows_side = "left", annot_cols_side = "top",
             layout = "br", include_diag = TRUE, show_names_diag = TRUE,
             show_names_x = FALSE, show_names_y = FALSE) +
  theme(plot.margin = margin(20, 10, 10, 50))

plt1 + plt2

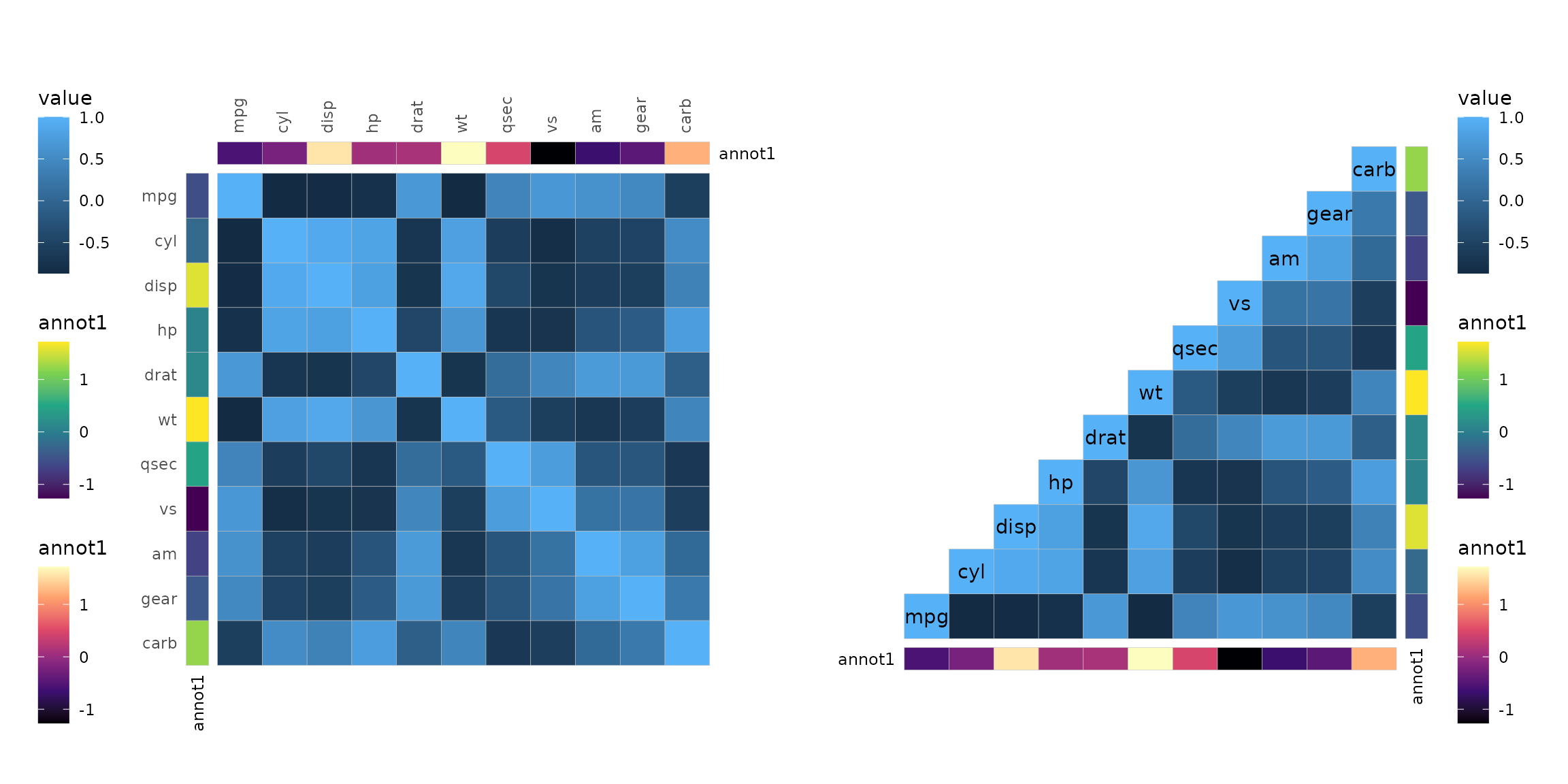

Two mtcars correlation heatmaps. The first one has row and column annotation to the left of and above the heatmap. The second one is a bottom right triangular heatmap and the row and column annotations are to the right and below.

The sizes and gaps between annotations and the heatmap can be adjusted with the annot_size, annot_dist (distance from heatmap) and annot_gap (gap between annotations) arguments.

set.seed(123)
row_annot <- as.data.frame(replicate(4, rnorm(ncol(mtcars))))
rownames(row_annot) <- colnames(mtcars)
ggcorrhm(mtcars, annot_rows_df = row_annot,
         legend_order = NA,
         # annot_dist controls the distance between the heatmap and the annotation
         annot_dist = 0,
         # annot_gap controls the gap between annotations
         annot_gap = 1,
         # annot_size controls the size (width if row, height if column) of the annotations
         annot_size = 2)

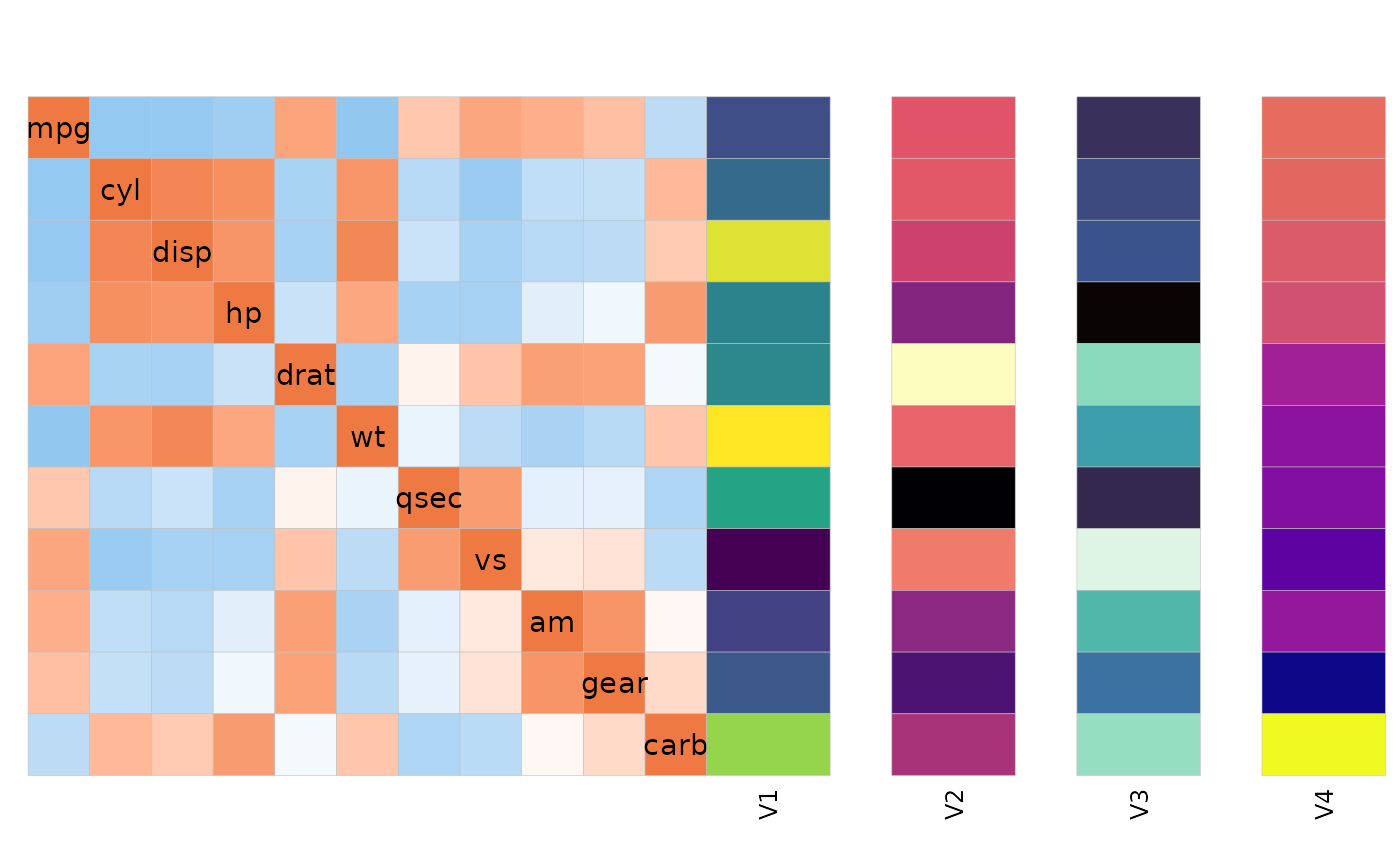

mtcars correlation heatmap with four row annotations to the right. The first annotation is right next to the heatmap with no gap in-between. The gaps between annotations are the same width as a cell in the heatmap, and the annotations are each two cells wide.

Other arguments to control annotations include show_annot_names (show/hide names), annot_legend (show/hide legends), border_col (cell border colour), and border_lwd (cell border linewidth). The border arguments are for the main heatmap but are applied to the annotations as well.

These parameters are applied to both row and column annotations but can be applied independently for row and column annotation by using the annot_rows_params and annot_cols_params arguments. These are named lists where the names specify what to change (dist, gap, size, show_names, border_col, and border_lwd).

df_in <- matrix(1:9, nrow = 3, ncol = 3, byrow = TRUE)
row_annot <- data.frame(annot1 = 1:3, annot2 = 4:6)
col_annot <- data.frame(annot3 = letters[1:3], annot4 = letters[4:6])

gghm(df_in, annot_rows_df = row_annot, annot_cols_df = col_annot,
     legend_order = NA,
     # border_col and border_lwd control both the heatmap and annotations
     border_col = "yellow", border_lwd = 1,
     annot_rows_params = list(
       # Hide labels
       show_names = FALSE
     ),
     annot_cols_params = list(
       # 'border_col' and 'border_lwd' control the border colour and linewidth
       border_col = "white", border_lwd = .3,
       # 'dist', 'gap', and 'size' work as described in the previous chunk
       dist = 1, gap = 0.3, size = 0.3
     ))

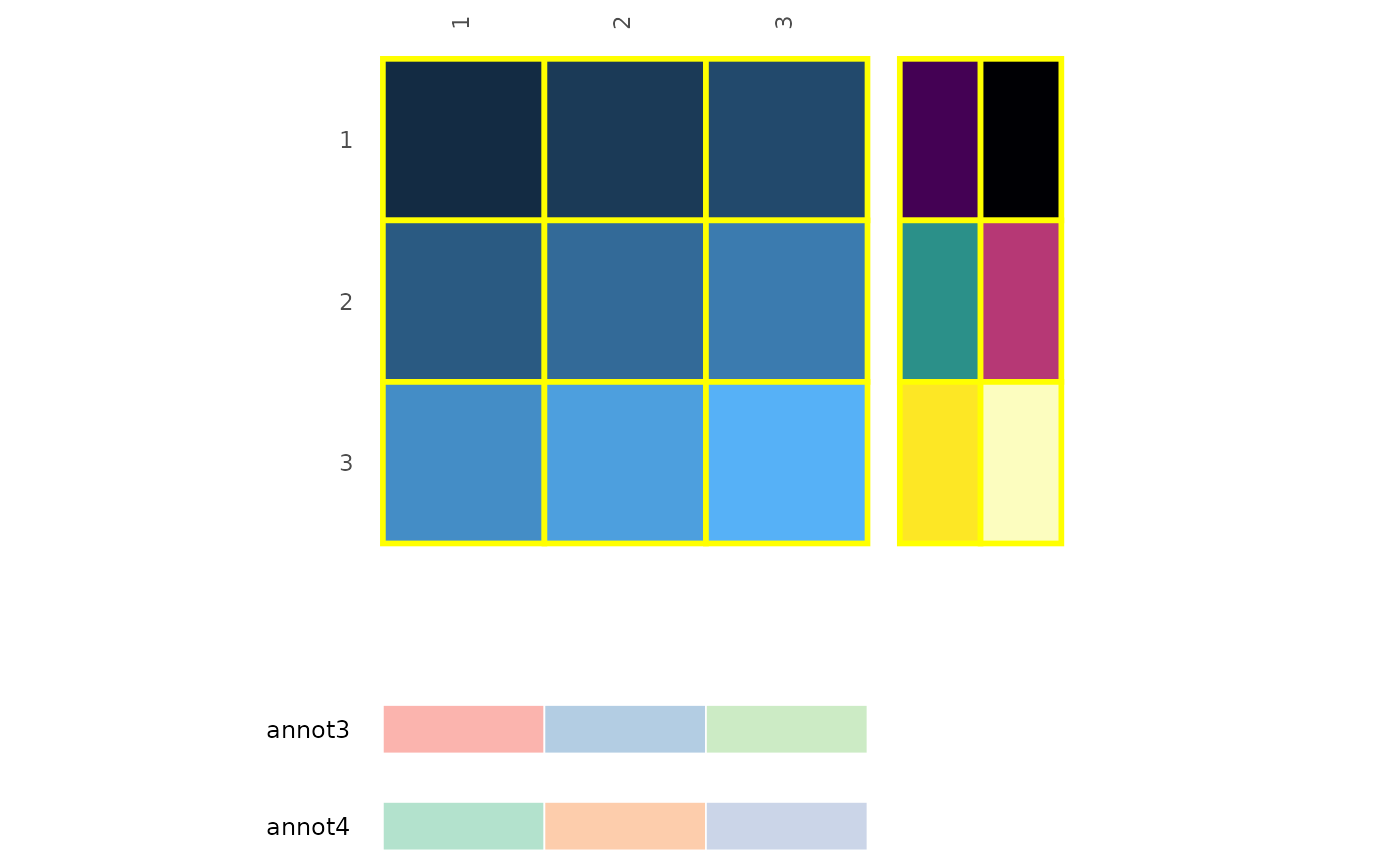

A 3x3 matrix with two row and two column annotations. The heatmap and the row annotations have thick yellow cell borders. The column annotations have thin white borders and are themselves thinner than the row annotation while also being far below the heatmap with a gap between the two annotations. While the column annotations have legends there are no legends for the row annotations.

Annotation labels

The sizes of the names can be changed using the annot_names_size argument. Further customisation is possible by passing named lists to the annot_rows_name_params and annot_cols_name_params arguments. These lists are passed on to grid::textGrob(), see its help page (and the example below) for more on what arguments are supported.

df_in <- matrix(1:9, nrow = 3, ncol = 3, byrow = TRUE)
row_annot <- data.frame(annot1 = 1:3, annot2 = 4:6)
col_annot <- data.frame(annot3 = letters[1:3], annot4 = letters[4:6])

gghm(df_in, annot_rows_df = row_annot, annot_cols_df = col_annot,
     legend_order = NA,
     annot_rows_name_params = list(
       # Use 'grid::gpar' for the 'gp' argument for a number of text-related parameters
       gp = grid::gpar(col = "magenta", alpha = 0.5, fontsize = 20, fontface = "bold")
     ),
     annot_cols_name_params = list(
       # 'rot' instead of 'angle' to change the angle
       rot = -45, hjust = 0.7, vjust = 0
     ))

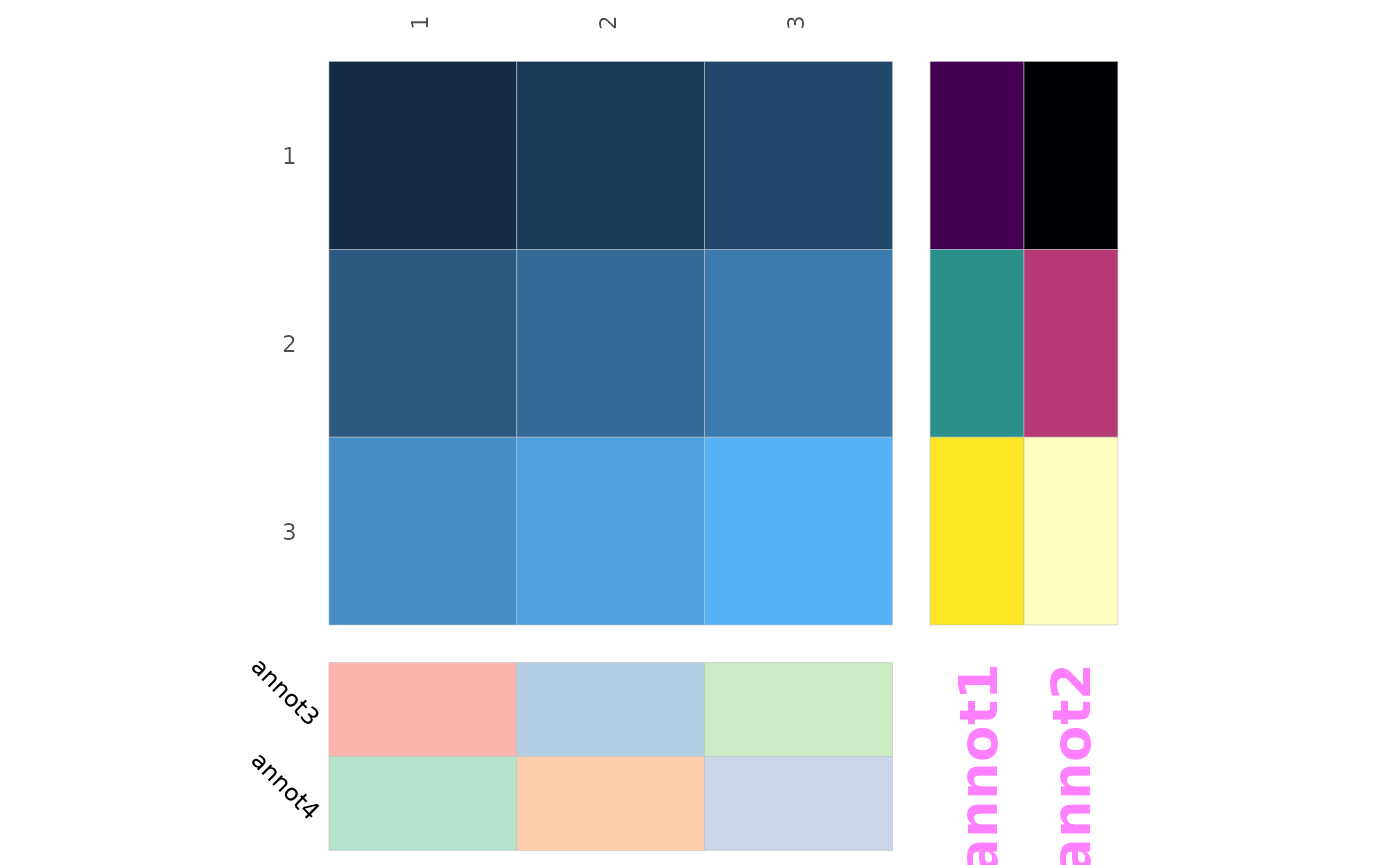

A 3x3 heatmap with two each of row and column annotations. The row annotation has vertical, large, magenta labels below showing the names. The column annotations have labels to the left, angled at 45 degrees.

If the annotation labels are too long and are cut off, the plot margins can be adjusted by using the ggplot2::theme() function and its plot.margin argument. Alternatively, the figure height can be increased, as the heatmap is set to use a fixed aspect ratio (ggplot2::coord_fixed()). This can be overwritten by adding ggplot2::coord_cartesian() to the output plot.

Dealing with missing values

If there are NAs in the annotation they are by default coloured grey. The colour can be changed using the annot_na_col argument, or by specifying a colour for the na.value argument in a ggplot2 scale when supplied using the annot_rows_col and annot_cols_col arguments. The annot_na_remove argument can be set to TRUE to not display the cells at all. If the annotation data frame does not contain all the names of the axis, those rows/columns will be left empty.

As a side note, annot_na_remove is by default set to be the same as na_remove so setting the NAs to be removed from the main heatmap removes NAs from the annotation unless annot_na_remove is changed. Similarly, the annot_na_col argument is also set to by default be the same as na_col.

set.seed(123)
# Row annotation with NAs
row_annot <- data.frame(.names = colnames(mtcars),
                        a = sample(c("A", "B", NA), ncol(mtcars), TRUE),
                        b = sample(c("V", "W", NA), ncol(mtcars), TRUE))
row_fill <- list(a = scale_fill_brewer(palette = "Purples", na.value = "green",
                                       # Adjust the order of the legend
                                       guide = guide_legend(order = 2)))

# Column annotation with missing names
col_annot <- data.frame(.names = sample(colnames(mtcars), 7),
                        c = rnorm(7),
                        d = runif(7))

plt1 <- ggcorrhm(mtcars, annot_rows_df = row_annot, annot_cols_df = col_annot,
                 annot_na_remove = TRUE)
plt2 <- ggcorrhm(mtcars, annot_rows_df = row_annot, annot_cols_df = col_annot,
                 annot_na_remove = FALSE, annot_rows_col = row_fill,
                 annot_na_col = "blue")

plt1 + plt2

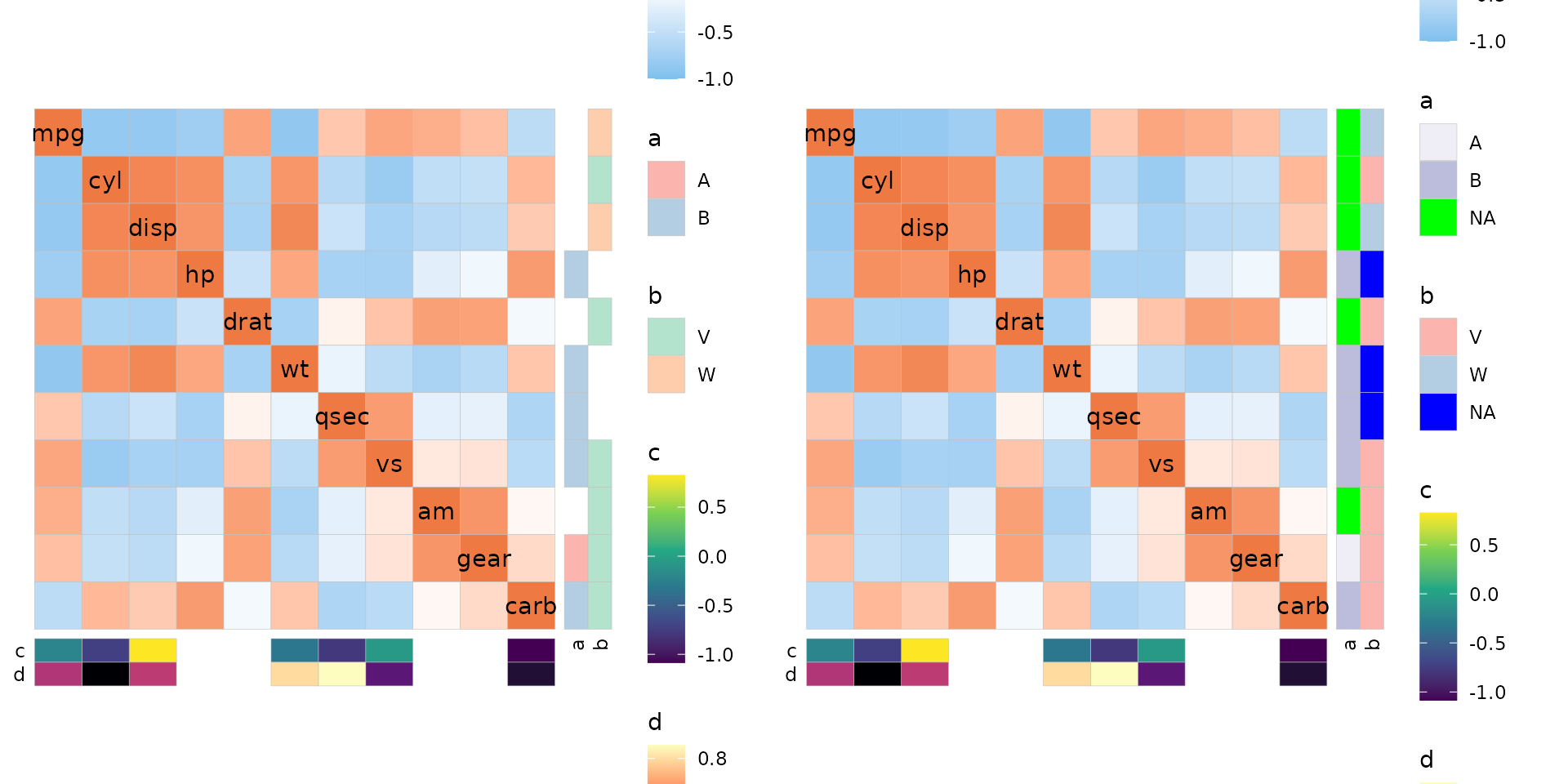

Two mtcars correlation heatmaps with two row and two column annotations. In the first plot, there are holes in the annotations showing that there are NAs. In the second plot, the row annotation NAs have cells coloured green (first annotation) and blue (second annotation). The column annotation still has holes.

As can be seen in some plots in previous sections, the legends may be cut off if there are many annotations. Fitting the legends can be tricky and is covered in the legends article.
