Make a heatmap with ggplot2.

Usage

gghm(
  x,
  layout = "full",
  mode = if (length(layout) == 1) "heatmap" else c("heatmap", "text"),
  col_scale = NULL,
  col_name = "value",
  limits = NULL,
  bins = NULL,
  size_scale = NULL,
  size_name = "value",
  legend_order = NULL,
  include_diag = TRUE,
  show_names_diag = FALSE,
  names_diag_params = NULL,
  show_names_x = TRUE,
  names_x_side = "top",
  show_names_y = TRUE,
  names_y_side = "left",
  na_col = "grey50",
  na_remove = FALSE,
  return_data = FALSE,
  cell_labels = FALSE,
  cell_label_col = "black",
  cell_label_size = 3,
  cell_label_digits = 2,
  border_col = "grey",
  border_lwd = 0.1,
  border_lty = 1,
  cell_bg_col = "white",
  cell_bg_alpha = 0,
  annot_rows_df = NULL,
  annot_cols_df = NULL,
  annot_rows_col = NULL,
  annot_cols_col = NULL,
  annot_rows_side = "right",
  annot_cols_side = "bottom",
  annot_dist = 0.2,
  annot_gap = 0,
  annot_size = 0.5,
  annot_border_col = if (length(border_col) == 1) border_col else "grey",
  annot_border_lwd = if (length(border_lwd) == 1) border_lwd else 0.5,
  annot_border_lty = if (length(border_lty) == 1) border_lty else 1,
  annot_na_col = na_col,
  annot_na_remove = na_remove,
  annot_rows_params = NULL,
  annot_cols_params = NULL,
  show_annot_names = TRUE,
  annot_names_size = 9,
  annot_rows_names_side = "bottom",
  annot_cols_names_side = "left",
  annot_rows_name_params = NULL,
  annot_cols_name_params = NULL,
  cluster_rows = FALSE,
  cluster_cols = FALSE,
  cluster_distance = "euclidean",
  cluster_method = "complete",
  show_dend_rows = TRUE,
  show_dend_cols = TRUE,
  dend_rows_side = "right",
  dend_cols_side = "bottom",
  dend_col = "black",
  dend_dist = 0,
  dend_height = 0.3,
  dend_lwd = 0.3,
  dend_lty = 1,
  dend_rows_params = NULL,
  dend_cols_params = NULL,
  dend_rows_extend = NULL,
  dend_cols_extend = NULL
)

Arguments

x: Matrix or data frame in wide format to make a heatmap of. If rownames are present they are used for the y axis labels, otherwise the row number is used. If a column named .names (containing unique row identifiers) is present it will be used as rownames.
layout: String specifying the layout of the output heatmap. Possible layouts include 'topleft', 'topright', 'bottomleft', 'bottomright', or the 'whole'/'full' heatmap (default and only possible option if the matrix is asymmetric). A combination of the first letters of each word also works (i.e. f, w, tl, tr, bl, br). If layout is of length two with two opposing triangles, a mixed layout will be used. For mixed layouts, mode needs a vector of length two (applied in the same order as layout). See details for more information.
mode: A string specifying plotting mode. Possible values are heatmap/hm for a normal heatmap, a number from 1 to 25 to draw the corresponding shape, text to write the cell values instead of filling cells (colour scaling with value), and none for blank cells.
col_scale: Colour scale to use for cells. If NULL, the default ggplot2 scale is used. If a string, the corresponding Brewer or Viridis scale is used. A string with a scale name with "rev_" in the beginning or "_rev" at the end will result in the reversed scale. Can also be a ggplot2 scale object to overwrite the scale. In mixed layouts, a list of two scales can be provided.
col_name: String to use for the colour scale legend title. Can be two values in mixed layouts for dual scales.
limits: Numeric vector of length two for the limits of the colour scale. NULL uses the default.
bins: Number of bins to divide the scale into (if continuous values). A 'double' class value uses 'nice.breaks' to put the breaks at nice numbers which may not result in the specified number of bins. If an integer the number of bins will be prioritised.
size_scale: ggplot2::scale_size_* call to use for size scaling if mode is a number from 1 to 25 (R pch). In mixed layouts, can also be a list of length two containing the two scales to use.
size_name: String to use for the size scale legend title. Can be two values in mixed layouts for dual scales.
legend_order: Integer vector specifying the order of legends (first value is for the first legend, second for the second, etc). The default (NULL) shows all legends. NAs hide the corresponding legends, a single NA hides all. Ignored for ggplot2 scale objects in col_scale and size_scale.
include_diag: Logical indicating if the diagonal cells (of a symmetric matrix) should be plotted. Mostly only useful for getting a cleaner look with symmetric correlation matrices with triangular layouts, where the diagonal is known to be 1.
show_names_diag: Logical indicating if names should be written in the diagonal cells (for symmetric input).
names_diag_params: List with named parameters (such as size, angle, etc) passed on to geom_text when writing the column names in the diagonal.
show_names_x: Logical indicating if names should be written on the x axis. Labels can be customised using ggplot2::theme() on the output plot.
names_x_side: String specifying position of the x axis names ("top" or "bottom").
show_names_y: Logical indicating if names should be written on the y axis.
names_y_side: String specifying position of the y axis names ("left" or "right").
na_col: Colour to use for cells with NA (both main heatmap and annotation).
na_remove: Logical indicating if NA values in the heatmap should be omitted (meaning no cell border is drawn). If NAs are kept, the fill colour can be set in the ggplot2 scale.
return_data: Logical indicating if the data used for plotting and clustering results should be returned.
cell_labels: Logical specifying if the cells should be labelled with the values. Alternatively, a matrix or data frame with the same shape and dimnames as x containing values to write in the cells. If mode is text, the cell label colours will scale with the cell values and cell_label_col is ignored.
cell_label_col: Colour to use for cell labels, passed to ggplot2::geom_text().
cell_label_size: Size of cell labels, used as the size argument in ggplot2::geom_text().
cell_label_digits: Number of digits to display when cells are labelled (if numeric values). Default is 2, passed to base::round(). NULL for no rounding.
border_col: Colour of cell borders. If mode is not a number, border_col can be set to NA to remove borders completely.
border_lwd: Size of cell borders. If mode is a number, border_col can be set to 0 to remove borders.
border_lty: Line type of cell borders. Either a number or its corresponding name, or a string of length 2, 4, 6, or 8. See 'lty' of graphics::par() for details. Not supported for numeric mode.
cell_bg_col: Colour to use for cell backgrounds in modes 'text' and 'none'.
cell_bg_alpha: Alpha for cell colours in modes 'text' and 'none'.
annot_rows_df: Data frame for row annotations. The names of the columns in the data must be included, either as row names or in a column named .names. Each other column specifies an annotation where the column name will be used as the annotation name (in the legend and next to the annotation). Numeric columns will use a continuous colour scale while factor or character columns use discrete scales.
annot_cols_df: Same usage as annot_rows_df but for column annotation.
annot_rows_col: Named list for row annotation colour scales. The names should specify which annotation each scale applies to. Elements can be strings or ggplot2 "Scale" class objects. If a string, it is used as the brewer palette or viridis option. If a scale object it is used as is, allowing more flexibility. This may change the order that legends are drawn in, specify order using the guide argument in the ggplot2 scale function.
annot_cols_col: Named list used for column annotation colour scales, used like annot_rows_col.
annot_rows_side: String specifying which side row annotation should be drawn ('left' or 'right', defaults to 'left').
annot_cols_side: String specifying which side column annotation should be drawn ('bottom' or 'top', defaults to 'bottom').
annot_dist: Distance between heatmap and first annotation cell where 1 is the size of one heatmap cell. Used for both row and column annotation.
annot_gap: Distance between each annotation where 1 is the size of one heatmap cell. Used for both row and column annotation.
annot_size: Size (width for row annotation, height for column annotation) of annotation cells compared to a heatmap cell. Used for both row and column annotation.
annot_border_col: Colour of cell borders in annotation. By default it is the same as border_col of the main heatmap if it is of length 1, otherwise uses default (grey).
annot_border_lwd: Line width of cell borders in annotation. By default it is the same as border_lwd of the main heatmap if it is of length 1, otherwise uses default (0.5).
annot_border_lty: Line type of cell borders in annotation. By default it is the same as border_lty of the main heatmap if it is of length 1, otherwise uses default (solid).
annot_na_col: Colour to use for NA values in annotations. Annotation-specific colour can be set in the ggplot2 scales in the annot_*_fill arguments.
annot_na_remove: Logical indicating if NAs in the annotations should be removed (producing empty spaces).
annot_rows_params: Named list with parameters for row annotations to overwrite the defaults set by the annot_* arguments, each name corresponding to the * part (see details for more information).
annot_cols_params: Named list with parameters for column annotations, used like annot_rows_params.
show_annot_names: Logical controlling if names of annotations should be shown in the drawing area.
annot_names_size: Size of annotation names.
annot_rows_names_side: String specifying which side the row annotation names should be on. Either "top" or "bottom".
annot_cols_names_side: String specifying which side the column annotation names should be on. Either "left" or "right".
annot_rows_name_params: Named list of parameters for row annotation names. Given to grid::textGrob, see ?grid::textGrob for details. ?grid::gpar is also helpful.
annot_cols_name_params: Named list of parameters for column annotation names. Given to grid::textGrob, see ?grid::textGrob for details. ?grid::gpar is also helpful.
cluster_rows: Logical indicating if rows should be clustered. Can also be a hclust or dendrogram object.
cluster_cols: Logical indicating if columns should be clustered. Can also be a hclust or dendrogram object.
cluster_distance: String with the distance metric to use for clustering, given to stats::dist().
cluster_method: String with the clustering method to use, given to stats::hclust().
show_dend_rows: Logical indicating if a dendrogram should be drawn for the rows.
show_dend_cols: Logical indicating if a dendrogram should be drawn for the columns.
dend_rows_side: Which side to draw the row dendrogram on ('left' or 'right', defaults to 'left').
dend_cols_side: Which side to draw the column dendrogram on ('bottom' or 'top', defaults to 'bottom').
dend_col: Colour to use for dendrogram lines, applied to both row and column dendrograms.
dend_dist: Distance from heatmap (or annotation) to leaves of dendrogram, measured in heatmap cells (1 is the size of one cell).
dend_height: Number by which to scale dendrogram height, applied to both row and column dendrograms.
dend_lwd: Linewidth of dendrogram lines, applied to both row and column dendrograms.
dend_lty: Dendrogram line type, applied to both row and column dendrograms.
dend_rows_params: Named list for row dendrogram parameters to overwrite common parameter values. See details for more information.
dend_cols_params: Named list for column dendrogram parameters to overwrite common parameter values. See details for more information.
dend_rows_extend: Named list or functional sequence for specifying dendextend functions to apply to the row dendrogram. See details for usage.
dend_cols_extend: Named list or functional sequence for specifying dendextend functions to apply to the column dendrogram. See details for usage.

Value

The heatmap as a ggplot object. If return_data is TRUE the output is a list containing the plot (named 'plot'), the plotting data ('plot_data', with factor columns 'row' and 'col' and a column 'value' containing the cell values), and the result of the clustering ('row_clustering' and/or 'col_clustering). If the layout is mixed, an extra factor column named 'layout' is included in 'plot_data', showing which triangle each cell belongs to.

Details

When using mixed layouts (layout is length two), mode needs to be length two as well, specifying the mode to use in each triangle. The cell_label_* and border_* arguments can all be length one to apply to the whole heatmap, length two vectors to apply to each triangle, or lists of length two, each element containing one value (apply to whole triangle) or a value per cell (apply cell-wise in triangle). cell_labels can also be specified per triangle, either as a logical vector of length two, or a list of length two containing a mix of logicals and matrices/data frames.

It is also possible to provide two scales for filling or colouring the triangles differently. In this case the col_scale must be one character value (scale used for both triangles) or NULL or a list of length two containing the scales to use (character or scale object, or NULL for default). size_scale works in the same way (but takes no character values). In addition, the scale-modifying arguments bins, na_col and limits can also be specified per triangle. limits must be a list of length two (or one) where each element is a numeric vector of length two.

The annotation parameter arguments annot_rows_params and annot_cols_params should be named lists, where the possible options correspond to the different annot_* arguments. The possible options are "dist" (distance between heatmap and annotation), "gap" (distance between annotations), "size" (cell size), "show_names" (logical, if the annotation names should be displayed), "border_col" (colour of border) and "border_lwd" (border line width). Any unused options will use the defaults set by the annot_* arguments.

The dendrogram parameters arguments dend_rows_params and dend_cols_params should be named lists, analogous to the annotation parameter arguments. Possible options are "col" (line colour), "dist" (distance from heatmap to dendrogram), "height" (height scaling), "lwd" (line width), and "lty" (line type).

The dend_rows_extend and dend_cols_extend arguments make it possible to customise the dendrograms using the dendextend package. The argument should be a named list, each element named after the dendextend function to use (consecutive usage of the set function is supported due to duplicate list names being possible). Each element should contain any arguments given to the dendextend function, such as the what argument used in the set function. Alternatively, dendextend functions can be provided in a functional sequence ("fseq" object) by piping together functions using the %>% pipe. Functions modifying the labels do not work as the dendrogram labels are not displayed (they are in the axis text). As dendextend::as.ggdend() is used for conversion of the dendrogram, anything not supported by as.ggdend() will not work (such as "nodes_bg" or "rect.dendrogram"). See examples and the clustering article for example usage.

Examples

library(ggplot2)

# Use part of the mtcars data (for visibility)
hm_in <- mtcars[1:15, ]

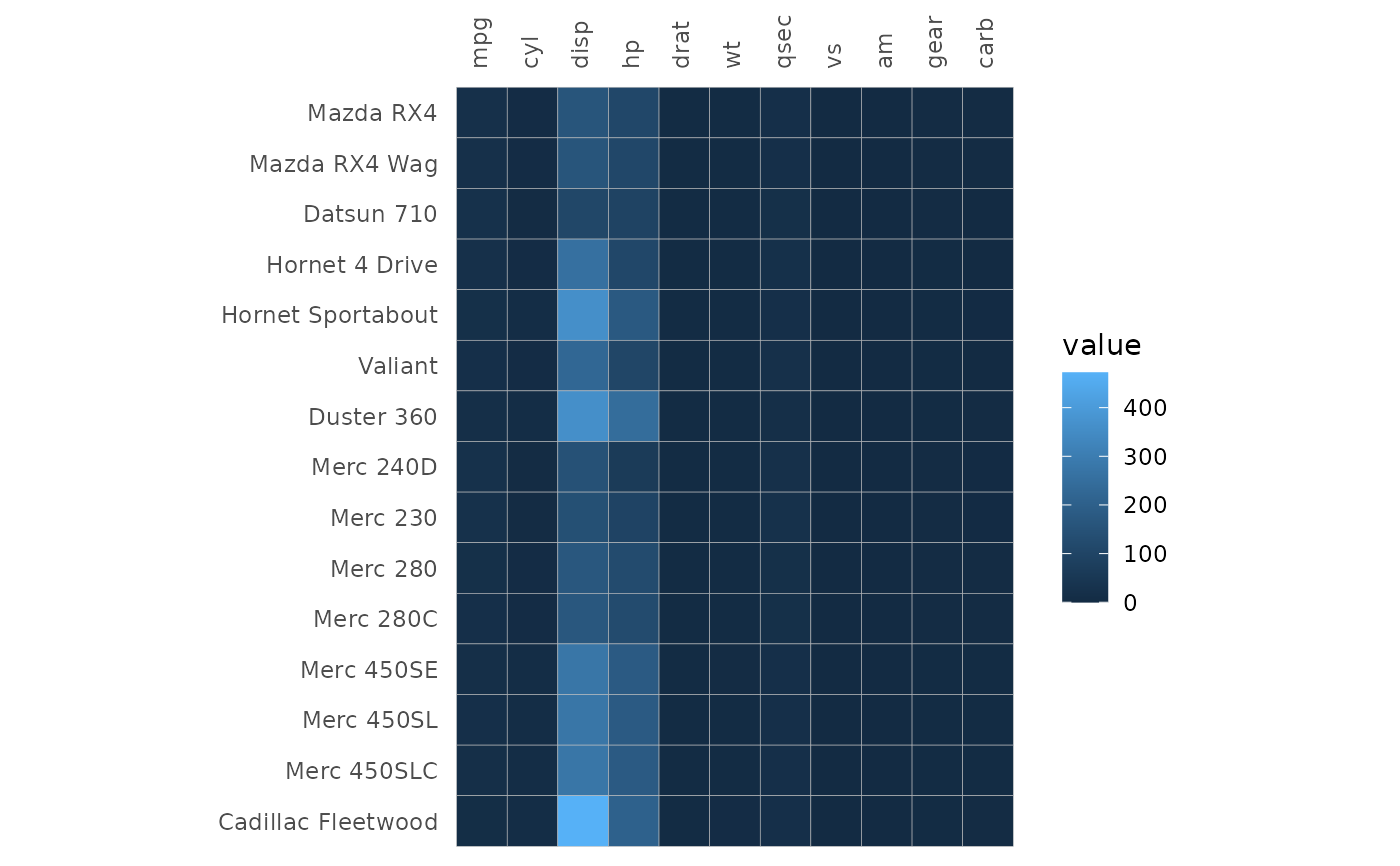

# Basic usage
gghm(hm_in)

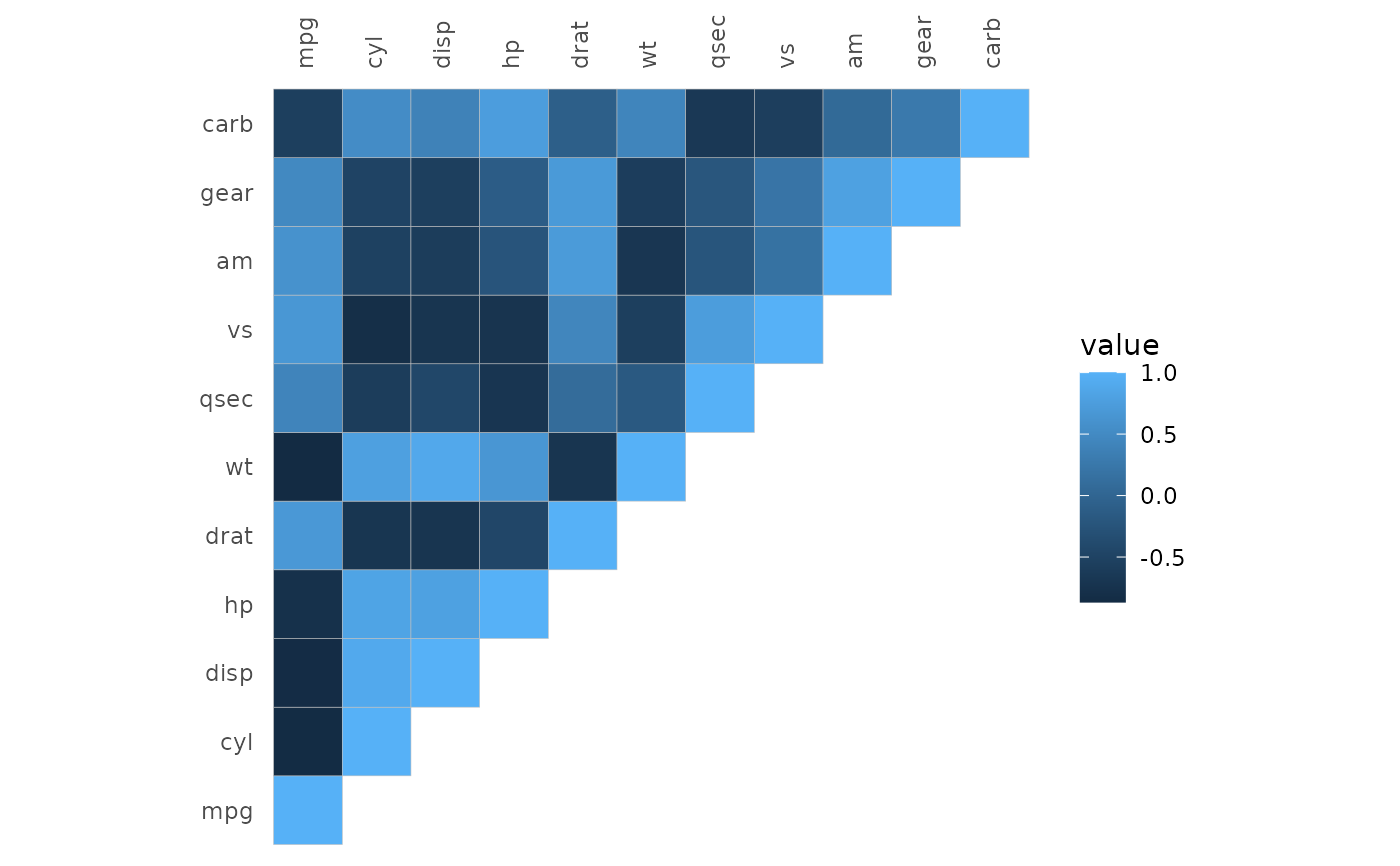

# Different layout (using a symmetric matrix)
gghm(cor(mtcars), layout = "tl")

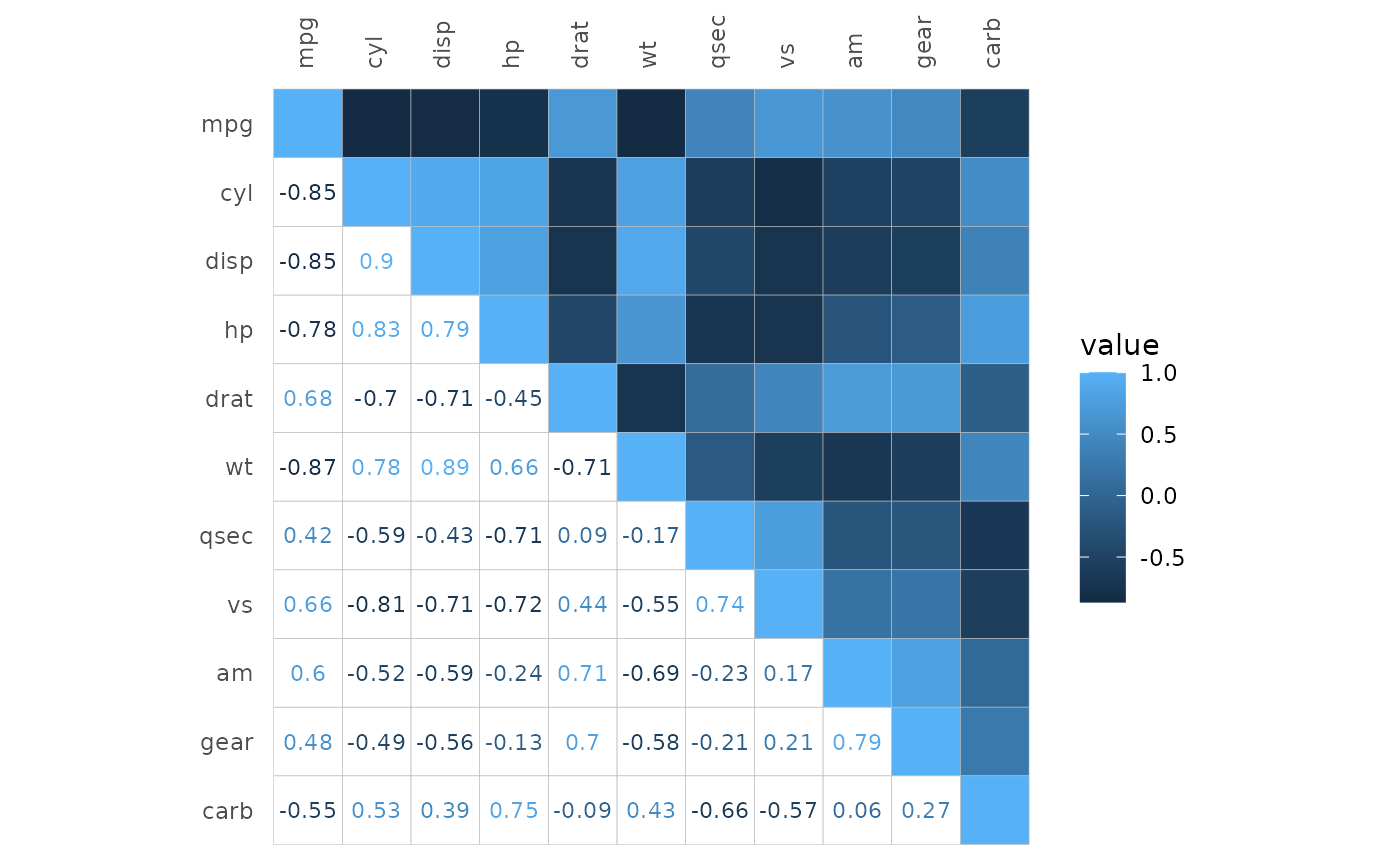

# Mixed layouts
gghm(cor(mtcars), layout = c("tr", "bl"),
     # Hide one of the legends
     legend_order = c(1, NA))

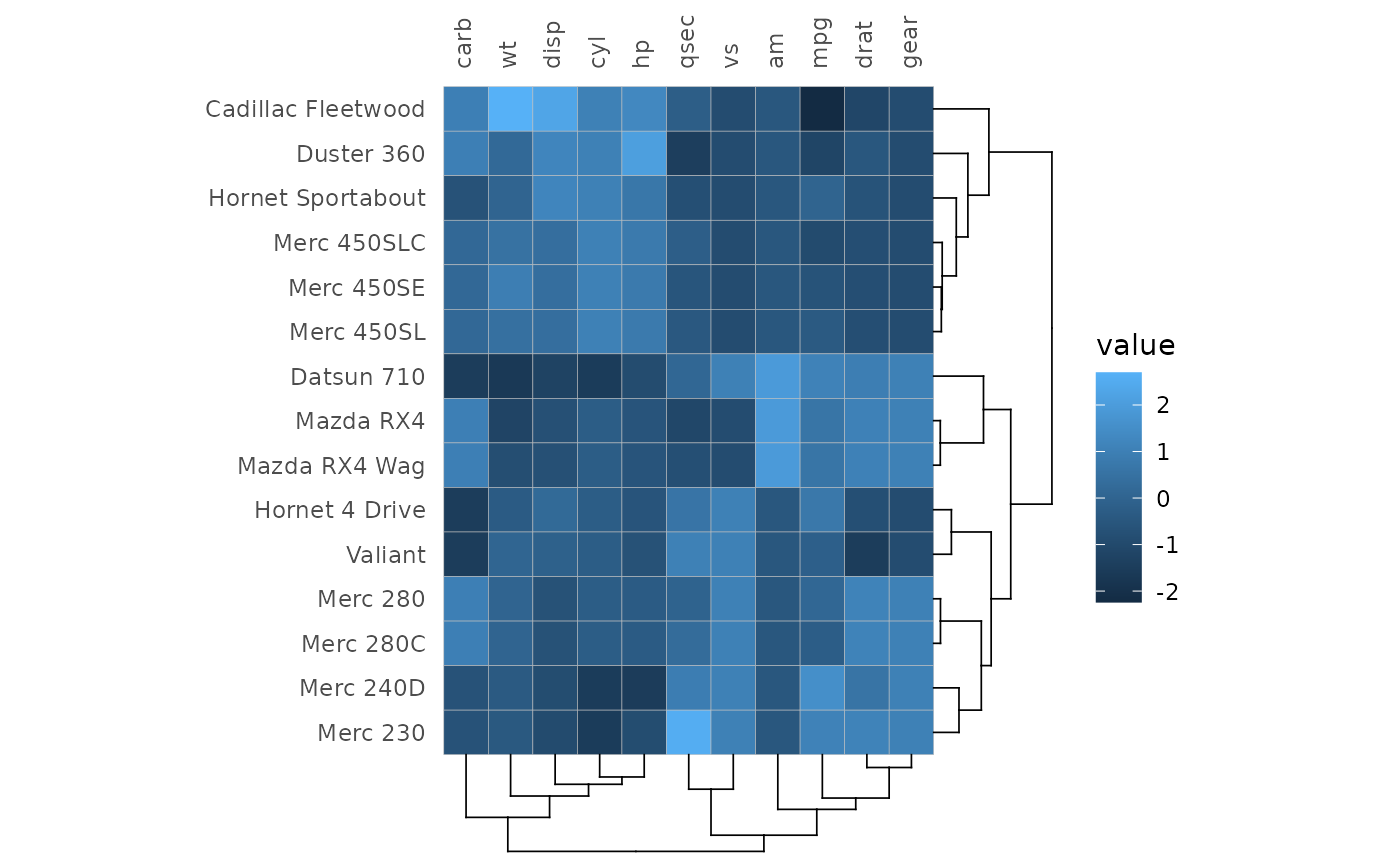

# With clustering
gghm(scale(hm_in), cluster_rows = TRUE, cluster_cols = TRUE)

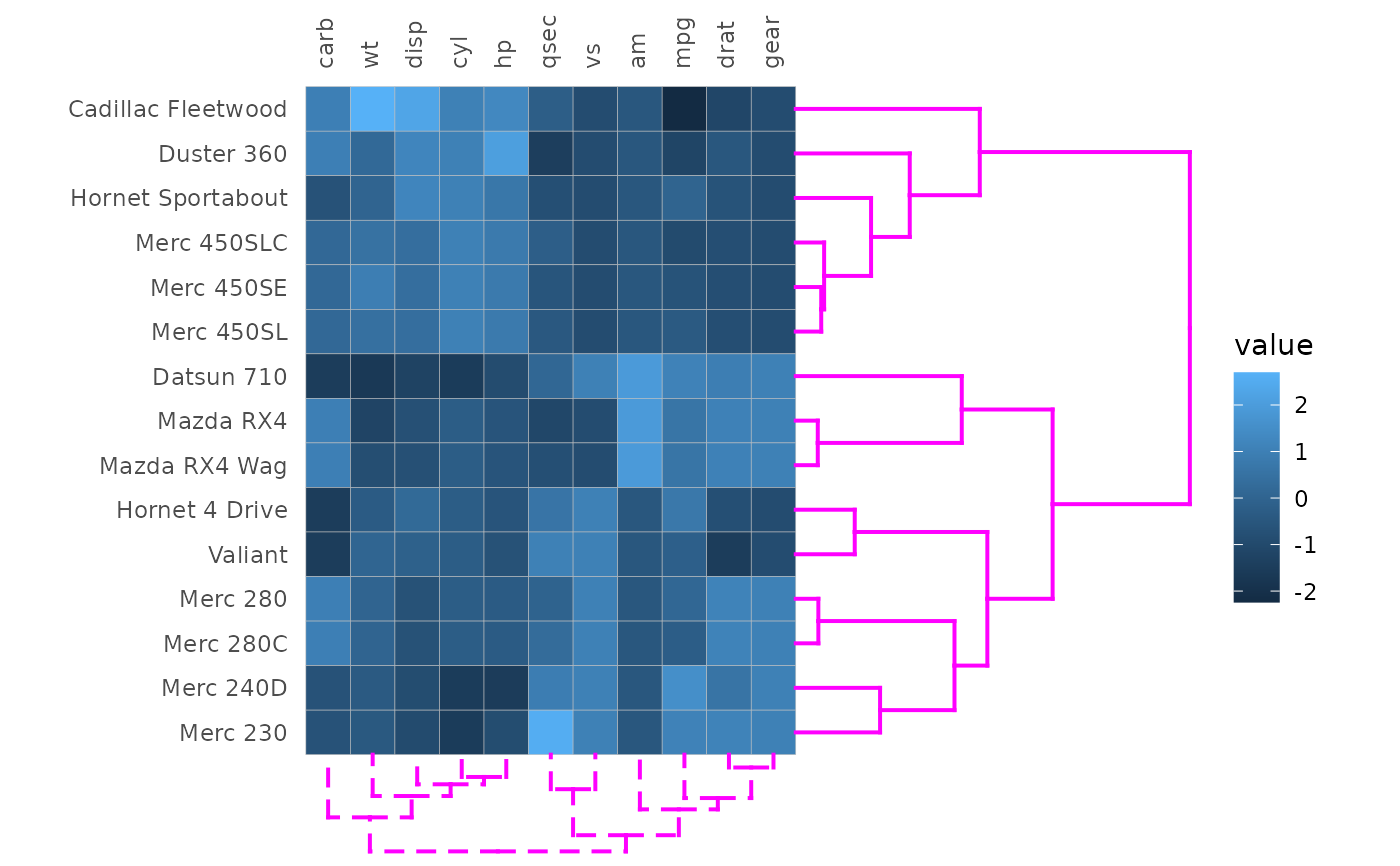

# Adjusting cluster dendrograms using common and specific options
gghm(scale(hm_in), cluster_rows = TRUE, cluster_cols = TRUE,
     # Common options
     dend_lwd = 0.7, dend_col = "magenta",
     # Specific options
     dend_rows_params = list(height = 1), dend_cols_params = list(lty = 2))

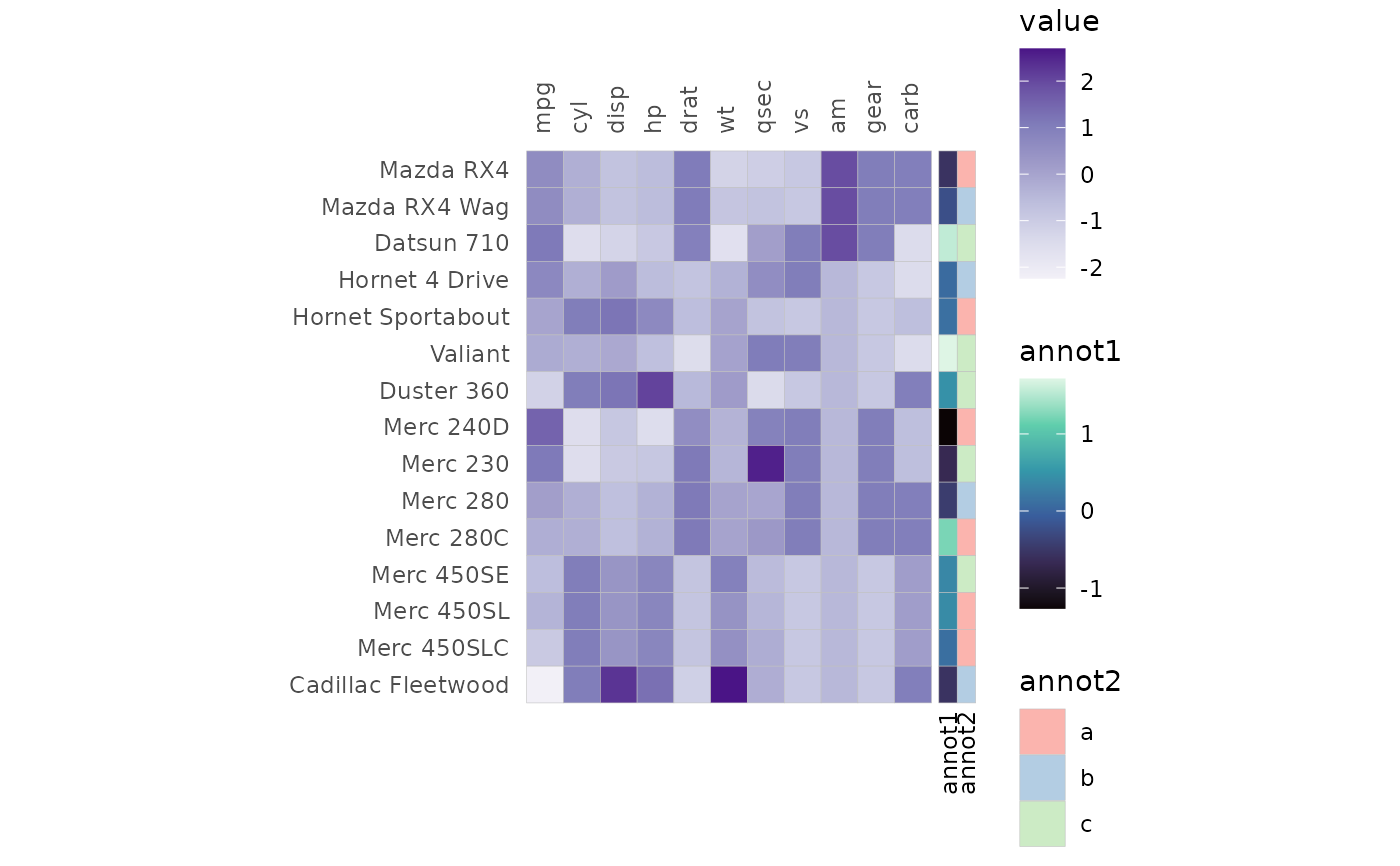

# With annotation and specifying colour scales
set.seed(123)
annot_rows <- data.frame(.names = rownames(hm_in),
                         annot1 = rnorm(nrow(hm_in)),
                         annot2 = sample(letters[1:3], nrow(hm_in), TRUE))
# Specify colour scale for one of the annotations (viridis mako)
annot_fill <- list(annot1 = "G")

gghm(scale(hm_in),
     # Change colours of heatmap (Brewer Purples)
     col_scale = "Purples",
     annot_rows_df = annot_rows, annot_rows_col = annot_fill) +
     # Use ggplot2::theme to adjust margins to fit the annotation names
     theme(plot.margin = margin(30, 10, 60, 20))

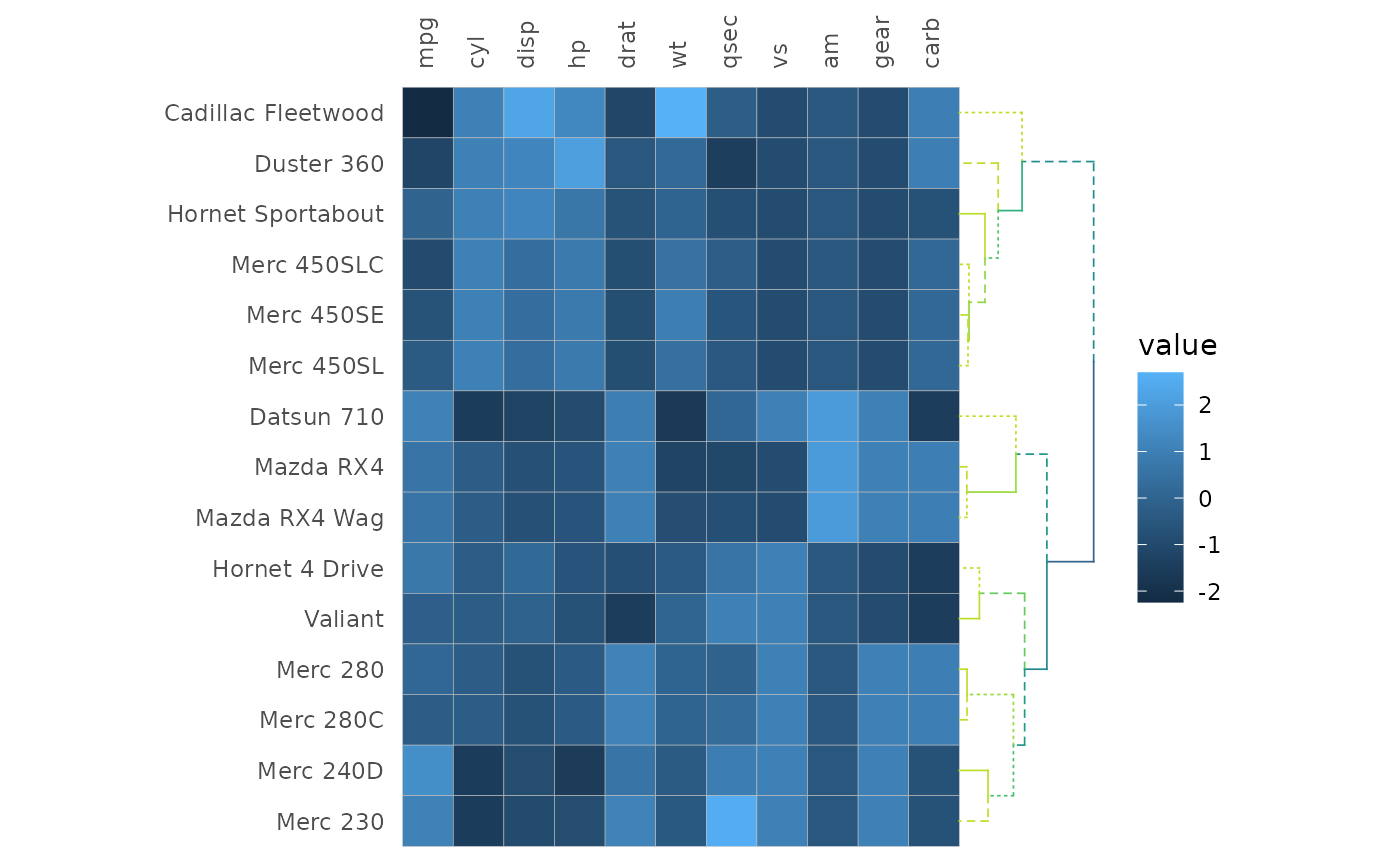

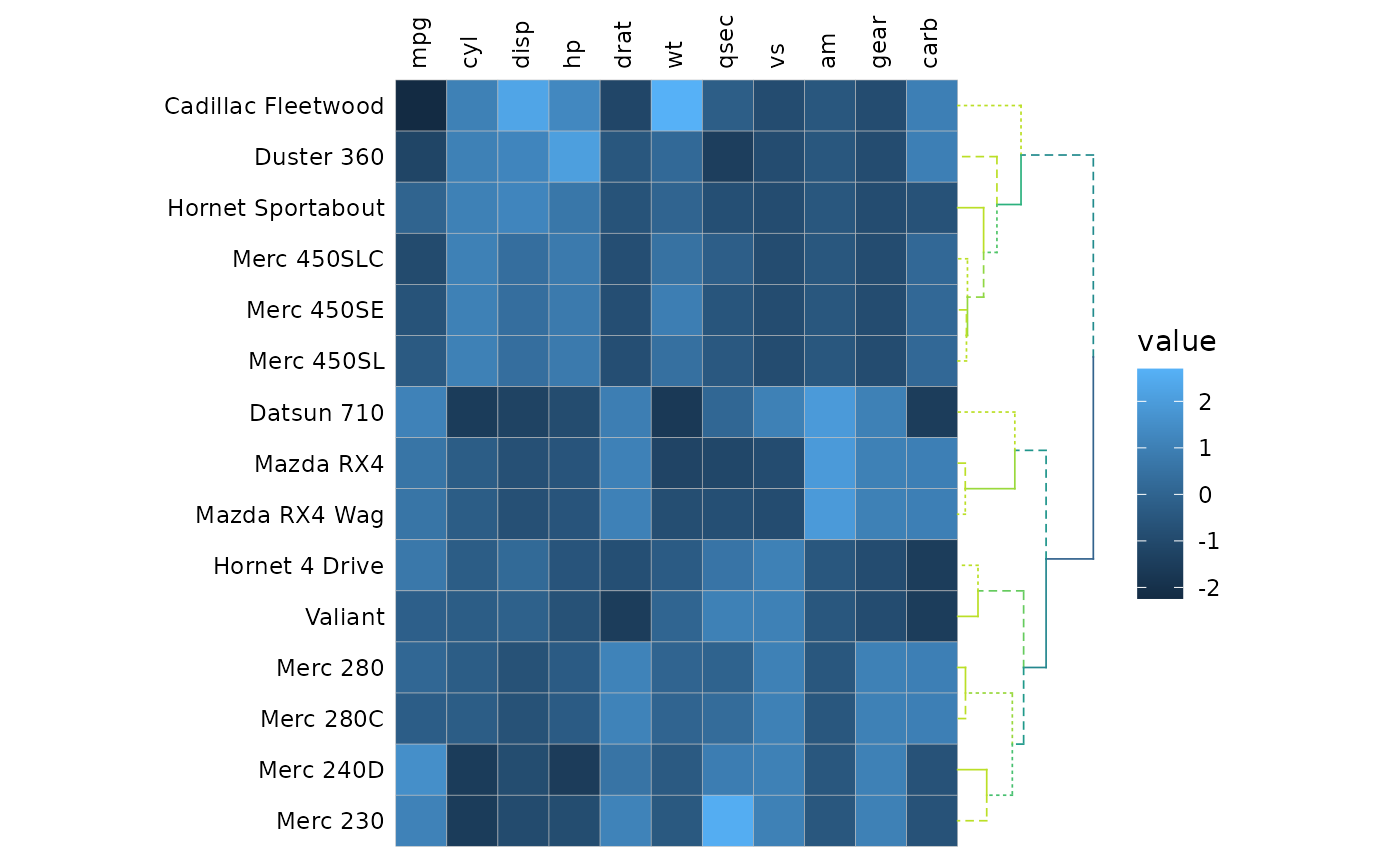

# Using the dend_*_extend arguments
gghm(scale(hm_in), cluster_rows = TRUE, dend_rows_extend =
  list("set" = list("branches_lty", c(1, 2, 3)),
       # Empty list element (or NULL) if no arguments to be given
       "highlight_branches_col" = list()))
