Make a correlation heatmap with ggplot2. — ggcorrhm • ggcorrheatmap

Make a correlation heatmap from input matrices. Uses a diverging colour scale centered around 0.

Usage

ggcorrhm(
  x,
  y = NULL,
  cor_method = "pearson",
  cor_use = "everything",
  cor_in = FALSE,
  high = "sienna2",
  mid = "white",
  low = "skyblue2",
  midpoint = 0,
  limits = c(-1, 1),
  bins = NULL,
  layout = "full",
  mode = if (length(layout) == 1) "heatmap" else c("heatmap", "text"),
  include_diag = TRUE,
  split_diag = FALSE,
  na_col = "grey50",
  na_remove = FALSE,
  return_data = FALSE,
  col_scale = NULL,
  col_name = NULL,
  size_range = c(4, 10),
  size_scale = NULL,
  size_name = NULL,
  legend_order = NULL,
  p_values = FALSE,
  p_adjust = "none",
  p_thresholds = c(`***` = 0.001, `**` = 0.01, `*` = 0.05, 1),
  cell_labels = FALSE,
  cell_label_p = FALSE,
  cell_label_col = "black",
  cell_label_size = 3,
  cell_label_digits = 2,
  cell_bg_col = "white",
  cell_bg_alpha = 0,
  border_col = "grey",
  border_lwd = 0.1,
  border_lty = 1,
  show_names_diag = TRUE,
  names_diag_params = NULL,
  show_names_rows = FALSE,
  names_rows_side = "left",
  show_names_cols = FALSE,
  names_cols_side = "top",
  show_names_x = NULL,
  names_x_side = NULL,
  show_names_y = NULL,
  names_y_side = NULL,
  annot_rows_df = NULL,
  annot_cols_df = NULL,
  annot_rows_col = NULL,
  annot_cols_col = NULL,
  annot_rows_side = "right",
  annot_cols_side = "bottom",
  annot_dist = 0.2,
  annot_gap = 0,
  annot_size = 0.5,
  annot_border_col = if (length(border_col) == 1) border_col else "grey",
  annot_border_lwd = if (length(border_lwd) == 1) border_lwd else 0.5,
  annot_border_lty = if (length(border_lty) == 1) border_lty else 1,
  annot_na_col = na_col,
  annot_na_remove = na_remove,
  annot_rows_params = NULL,
  annot_cols_params = NULL,
  show_annot_names = TRUE,
  annot_names_size = 3,
  annot_rows_names_side = "bottom",
  annot_cols_names_side = "left",
  annot_rows_names_params = NULL,
  annot_cols_names_params = NULL,
  annot_rows_name_params = NULL,
  annot_cols_name_params = NULL,
  cluster_rows = FALSE,
  cluster_cols = FALSE,
  cluster_distance = "euclidean",
  cluster_method = "complete",
  show_dend_rows = TRUE,
  show_dend_cols = TRUE,
  dend_rows_side = "right",
  dend_cols_side = "bottom",
  dend_col = "black",
  dend_dist = 0,
  dend_height = 0.3,
  dend_lwd = 0.3,
  dend_lty = 1,
  dend_rows_params = NULL,
  dend_cols_params = NULL,
  dend_rows_extend = NULL,
  dend_cols_extend = NULL,
  split_rows = NULL,
  split_cols = NULL,
  split_rows_side = "right",
  split_cols_side = "bottom"
)

Arguments

x: Matrix or data frame in wide format containing the columns to correlate against each other or against the columns in y.
y: Optional matrix or data frame in wide format containing columns to correlate with the columns in x.
cor_method: String specifying correlation method to use in the stats::cor() function. Default is 'pearson'.
cor_use: String specifying the use argument of stats::cor(), which defines how to deal with missing values. Default is 'everything'.
cor_in: Logical indicating if the input data contains correlation values and any correlation computations (including p-values) should be skipped. Default is FALSE.
high: Colour to use for the highest value of the colour scale.
mid: Colour to use for 0 in the colour scale.
low: Colour to use for the lowest value of the colour scale.
midpoint: Value for the middle point of the colour scale.
limits: Numeric vector of length two for the limits of the colour scale. NULL uses the default.
bins: Number of bins to divide the scale into (if continuous values). A 'double' class value uses 'nice.breaks' to put the breaks at nice numbers which may not result in the specified number of bins. If an integer the number of bins will be prioritised.
layout: String specifying the layout of the output heatmap. Possible layouts include 'topleft', 'topright', 'bottomleft', 'bottomright', or the 'whole'/'full' heatmap (default and only possible option if the matrix is not square with identical dimnames). A combination of the first letters of each word also works (i.e. f, w, tl, tr, bl, br). If layout is of length two with two opposing triangles, a mixed layout will be used. For mixed layouts, mode needs a vector of length two (applied in the same order as layout). See details of gghm() for more information.
mode: A string specifying plotting mode. Possible values are heatmap/hm for a normal heatmap, a number from 1 to 25 to draw the corresponding shape, text to write the cell values instead of filling cells (colour scaling with value), and none for blank cells.
include_diag: Logical indicating if the diagonal cells should be plotted (if the matrix is square with the same row- and colnames).
split_diag: Logical indicating if the diagonal cells should be drawn as triangles, splitting the diagonal in two.
na_col: Colour to use for cells with NA (both main heatmap and annotation).
na_remove: Logical indicating if NA values in the heatmap should be omitted (meaning no cell border is drawn). This does not affect how NAs are handled in the correlation computations, use the cor_use argument for NA handling in correlation.
return_data: Logical indicating if the data used for plotting (i.e. the correlation values and, if computed, clustering and p-values) should be returned.
col_scale: Scale to use for cell colours. If NULL (default), a divergent scale is constructed from the high, mid, low, midpoint, limits, and bins arguments. These arguments are ignored if a ggplot2::scale_* function is provided instead. If a string, the corresponding Brewer or Viridis scale is used. A string with a scale name with "rev_" in the beginning or "_rev" at the end will result in the reversed scale. In mixed layouts, can also be a list of length two containing the two scales to use.
col_name: String to use for the correlation scale. If NULL (default) the text will depend on the correlation method. Can be two values in mixed layouts for dual scales.
size_range: Numeric vector of length 2, specifying lower and upper ranges of shape sizes. Ignored if size_scale is not NULL.
size_scale: ggplot2::scale_size_* call to use for size scaling if mode is a number from 1 to 25 (R pch). The default behaviour (NULL) is to use a continuous scale with the absolute values of the correlation.
size_name: String to use for the size scale legend title. Can be two values in mixed layouts for dual scales.
legend_order: Integer vector specifying the order of legends (first value is for the first legend, second for the second, etc). The default (NULL) shows all but size legends. NAs hide the corresponding legends, a single NA hides all. Ignored for ggplot2 scale objects in col_scale and size_scale.
p_values: Logical indicating if p-values should be calculated. Use with p_thresholds to mark cells, and/or return_data to get the p-values in the output data.
p_adjust: String specifying the multiple testing adjustment method to use for the p-values (default is "none"). Passed to stats::p.adjust().
p_thresholds: Named numeric vector specifying p-value thresholds (in ascending order) to mark. The last element must be 1 or higher (to set the upper limit). Names must be unique, but one element can be left unnamed (by default 1 is unnamed, meaning values between the threshold closest to 1 and 1 are not marked in the plot). If NULL, no thresholding is done and p-value intervals are not marked with symbols.
cell_labels: Logical specifying if the cells should be labelled with the correlation values. Alternatively, a matrix or data frame with the same shape and dimnames as x containing values to write in the cells. If mode is text, the cell label colours will scale with the correlation values and cell_label_col is ignored.
cell_label_p: Logical indicating if, when cell_labels is TRUE, p-values should be written instead of correlation values.
cell_label_col: Colour to use for cell labels, passed to ggplot2::geom_text().
cell_label_size: Size of cell labels, used as the size argument in ggplot2::geom_text().
cell_label_digits: Number of digits to display when cells are labelled (if numeric values). Default is 2, passed to base::round(). NULL for no rounding.
cell_bg_col: Colour to use for cell backgrounds in modes 'text' and 'none'.
cell_bg_alpha: Alpha for cell colours in modes 'text' and 'none'.
border_col: Colour of cell borders. If mode is not a number, border_col can be set to NA to remove borders completely.
border_lwd: Size of cell borders. If mode is a number, border_col can be set to 0 to remove borders.
border_lty: Line type of cell borders. Either a number or its corresponding name, or a string of length 2, 4, 6, or 8. See 'lty' of graphics::par() for details. Not supported for numeric mode.
show_names_diag: Logical indicating if names should be written in the diagonal cells.
names_diag_params: List with named parameters (such as size, angle, etc) passed on to geom_text when writing the column names in the diagonal.
show_names_rows, show_names_cols: Logical indicating if row/colnames should be written on the axes. Labels can be customised using ggplot2::theme() on the output plot.
names_rows_side: String specifying position of the row names ("left" or "right").
names_cols_side: String specifying position of the column names ("top" or "bottom").
show_names_x, show_names_y: Deprecated in favour of show_names_rows and show_names_cols. Logical indicating if row/colnames should be shown.
names_x_side: Deprecated in favour of names_cols_side. String specifying position of the x axis names ("top" or "bottom").
names_y_side: Deprecated in favour of names_rows_side. String specifying position of the y axis names ("left" or "right").
annot_rows_df, annot_cols_df: Data frame for row and column annotations. The names of the columns in the data must be included, either as row names or in a column named .names. Each other column specifies an annotation where the column name will be used as the annotation name (in the legend and next to the annotation). Numeric columns will use a continuous colour scale while factor or character columns use discrete scales.
annot_rows_col, annot_cols_col: Named list for row and column annotation colour scales. The names should specify which annotation each scale applies to. Elements can be strings or ggplot2 "Scale" class objects. If a string, it is used as the brewer palette or viridis option. If a scale object it is used as is, allowing more flexibility. This may change the order that legends are drawn in, specify order using the guide argument in the ggplot2 scale function.
annot_rows_side: String specifying which side row annotation should be drawn ('left' or 'right', defaults to 'left').
annot_cols_side: String specifying which side column annotation should be drawn ('bottom' or 'top', defaults to 'bottom').
annot_dist: Distance between heatmap and first annotation cell where 1 is the size of one heatmap cell. Used for both row and column annotation.
annot_gap: Distance between each annotation where 1 is the size of one heatmap cell. Used for both row and column annotation.
annot_size: Size (width for row annotation, height for column annotation) of annotation cells compared to a heatmap cell. Used for both row and column annotation.
annot_border_col: Colour of cell borders in annotation. By default it is the same as border_col of the main heatmap if it is of length 1, otherwise uses default (grey).
annot_border_lwd: Line width of cell borders in annotation. By default it is the same as border_lwd of the main heatmap if it is of length 1, otherwise uses default (0.5).
annot_border_lty: Line type of cell borders in annotation. By default it is the same as border_lty of the main heatmap if it is of length 1, otherwise uses default (solid).
annot_na_col: Colour to use for NA values in annotations. Annotation-specific colour can be set in the ggplot2 scales in the annot_*_fill arguments.
annot_na_remove: Logical indicating if NAs in the annotations should be removed (producing empty spaces).
annot_rows_params, annot_cols_params: Named list with parameters for row or column annotations to overwrite the defaults set by the annot_* arguments, each name corresponding to the * part (see details of gghm() for more information).
show_annot_names: Logical controlling if names of annotations should be shown in the drawing area.
annot_names_size: Size of annotation names.
annot_rows_names_side: String specifying which side the row annotation names should be on. Either "top" or "bottom".
annot_cols_names_side: String specifying which side the column annotation names should be on. Either "left" or "right".
annot_rows_names_params, annot_cols_names_params: Named list of parameters for row and column annotation names. Given to ggplot2::geom_text().
annot_rows_name_params, annot_cols_name_params: Deprecated and kept for backward compatibility. Named list of parameters given to grid::textGrob() for annotation names. Does not work well with heatmap splits.
cluster_rows, cluster_cols: Logical indicating if rows or columns should be clustered. Can also be hclust or dendrogram objects.
cluster_distance: String with the distance metric to use for clustering, given to stats::dist().
cluster_method: String with the clustering method to use, given to stats::hclust().
show_dend_rows, show_dend_cols: Logical indicating if a dendrogram should be drawn for the rows or columns.
dend_rows_side: Which side to draw the row dendrogram on ('left' or 'right', defaults to 'left').
dend_cols_side: Which side to draw the column dendrogram on ('bottom' or 'top', defaults to 'bottom').
dend_col: Colour to use for dendrogram lines, applied to both row and column dendrograms.
dend_dist: Distance from heatmap (or annotation) to leaves of dendrogram, measured in heatmap cells (1 is the size of one cell).
dend_height: Number by which to scale dendrogram height, applied to both row and column dendrograms.
dend_lwd: Linewidth of dendrogram lines, applied to both row and column dendrograms.
dend_lty: Dendrogram line type, applied to both row and column dendrograms.
dend_rows_params, dend_cols_params: Named list for row or column dendrogram parameters. See details of gghm() for more information.
dend_rows_extend, dend_cols_extend: Named list or functional sequence for specifying dendextend functions to apply to the row or column dendrogram. See details of gghm() and ggcorrhm() for usage.
split_rows, split_cols: Vectors for splitting the rows and columns into facets. Can be a numeric vector shorter than the number of rows/columns to split the heatmap after those indices, or a vector of the same length as the number of rows/columns containing the facet memberships. In the latter case names can be used to match with rows/columns. Alternatively, if clustering is applied a single numeric value is accepted for the number of clusters to divide the plot into.
split_rows_side, split_cols_side: Which side the row/column facet strips should be drawn on ('left'/'right', 'top'/'bottom').

Value

The correlation heatmap as a ggplot object. If return_data is TRUE the output is a list containing the plot (named 'plot'), the correlations ('plot_data', with factor columns 'row' and 'col' and a column 'value' containing the cell values, and 'layout' which part of the heatmap each cell belongs to), and the result of the clustering ('row_clustering' and 'col_clustering', if clustered). If p-values were calculated, two additional columns named 'p_val' and 'p_adj' are included in 'plot_data', containing nominal and adjusted p-values.

Details

ggcorrhm() makes it convenient to make correlation heatmaps, taking the input matrix or data frame to visualise the correlations between columns with the gghm() function. The input values can either be one matrix or data frame with columns to correlate with each other, or two matrices or data frames with columns to correlate between the matrices. No rownames are needed, but if two matrices are provided they should have the same number of rows and the rows should be ordered in a meaningful way (i.e. same sample/individual/etc in the same row in both).

Row and column names are displayed in the diagonal by default if the correlation matrix is square with identical dimnames (only x is provided or x and y are identical).

The colour scale is set to be a diverging gradient around 0, with options to change the low, mid, and high colours, the midpoint, and the limits (using the arguments of the same names). The bins argument converts the scale to a discrete scale divided into bins equally distributed bins (if an integer the breaks may be at strange numbers, if a double the number of bins may be different but the breaks are at nicer numbers). These arguments can be of length two (limits a list of length two) two apply to each triangle in a mixed layout (detailed more in the details section of gghm()). The size_range argument (for size scales) can also be a list of length two like limits.

The size scale, used when a numeric cell shape is specified, is set to vary the shape size between 4 and 10 (can be changed with the size_range argument) and to transform the values to absolute values (so that both positive and negative correlations are treated equally). This behaviour can be overwritten by setting size_scale to another ggplot2::scale_size_* function with the desired arguments, or ggplot2::scale_size() for no special behaviour. ggplot2::scale_size_area() also scales with the absolute value, but only the upper size limit can be set. When the absolute value transformation is used the legend for sizes loses its meaning (only displaying positive values) and is therefore set to not be shown if legend_order is NULL.

For square correlation matrices, the dendrogram customisation arguments dend_rows_extend and dend_cols_extend work best with functions that only change the dendrogram cosmetically such as the colours, linetypes or node shapes. While it is possible to reorder (using e.g. 'rotate', 'ladderize') or prune (using e.g. 'prune'), anything that changes the structure of the dendrogram may end up looking strange for square matrices if only applied to one dimension (e.g. the diagonal may not be on the diagonal, triangular or mixed layouts may not work). The same applies if the cluster_rows and cluster_cols arguments are hclust or dendrogram objects.

Examples

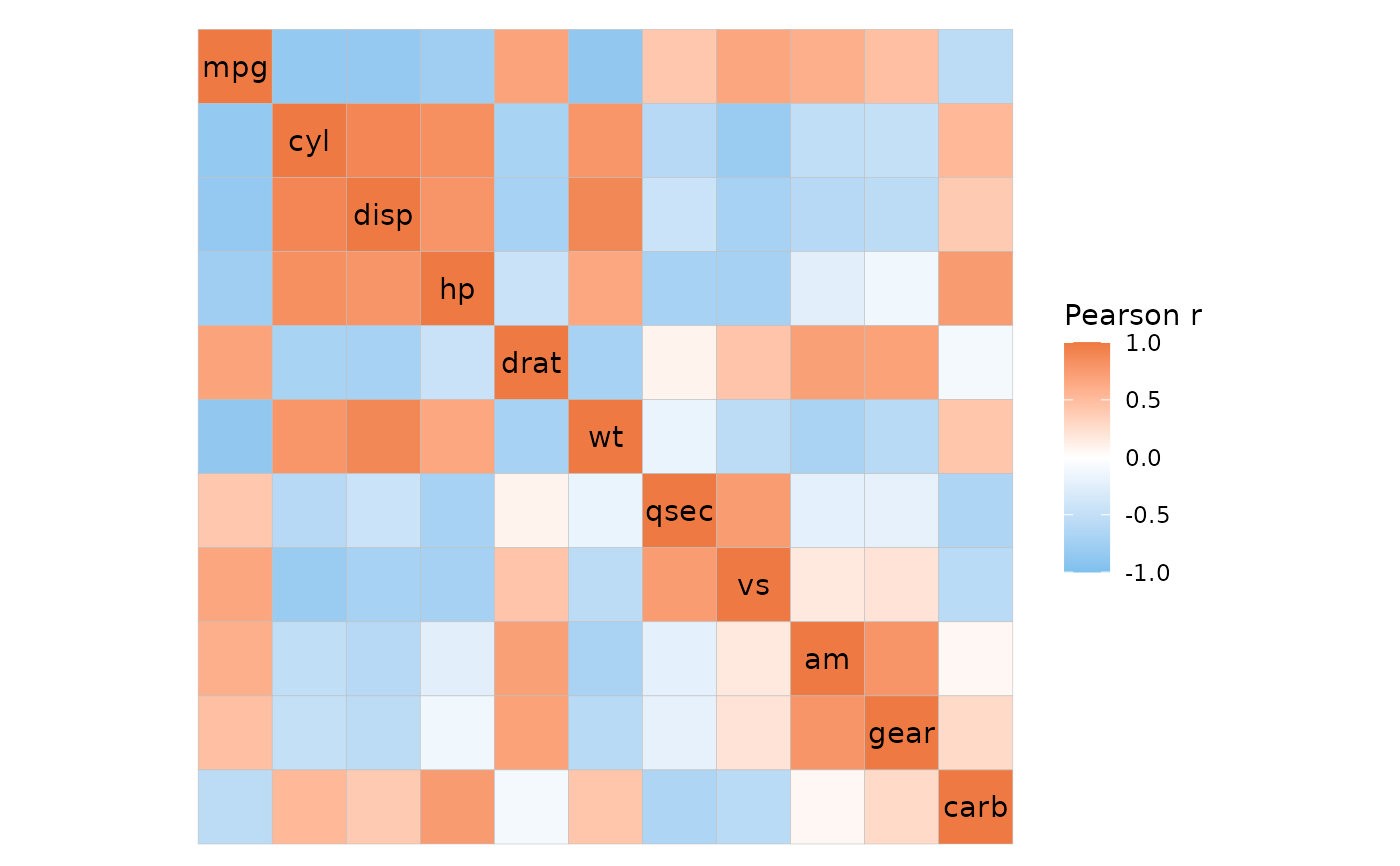

# Basic usage
ggcorrhm(mtcars)

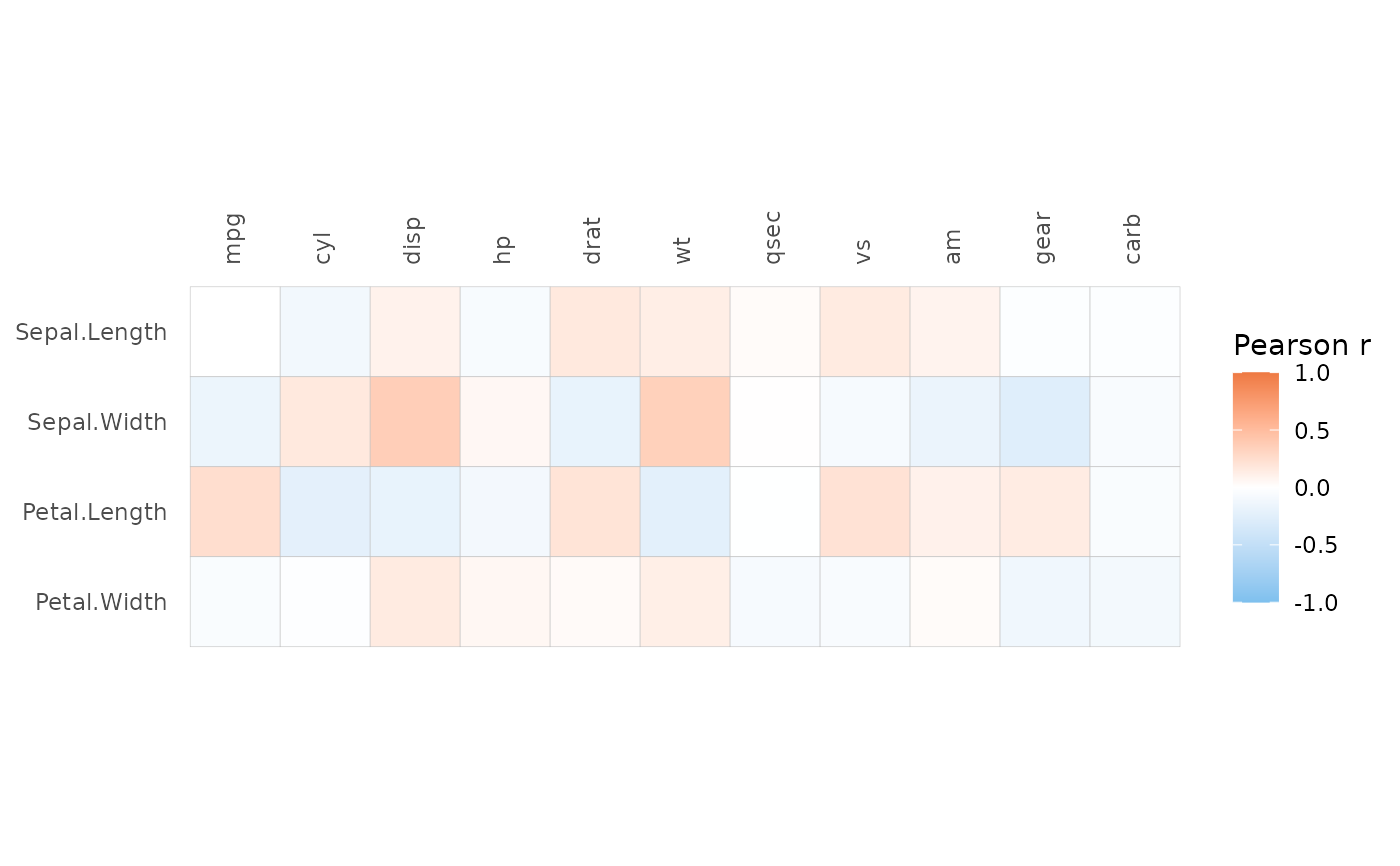

# With two matrices
ggcorrhm(iris[1:32, -5], mtcars)

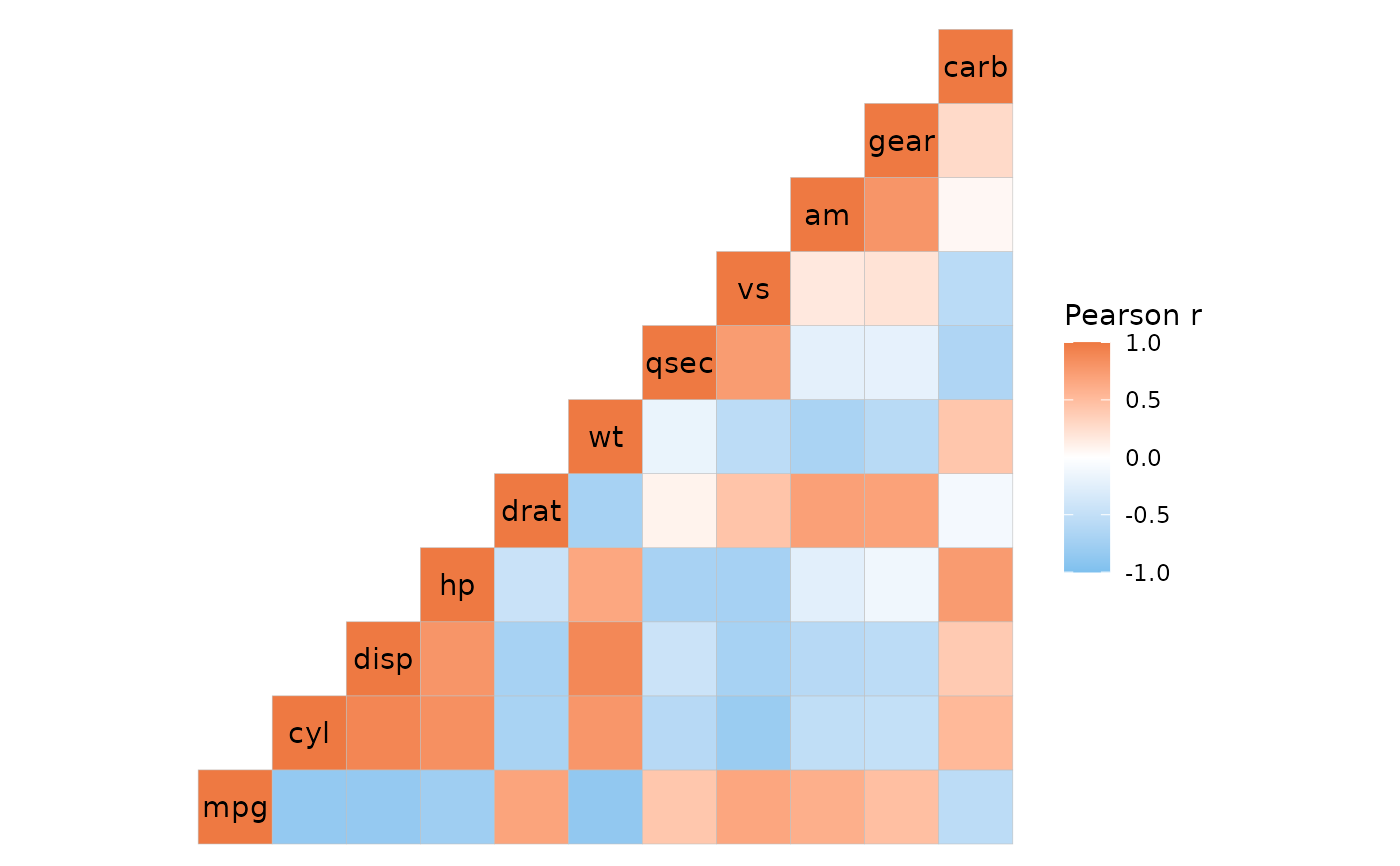

# Different layout
ggcorrhm(mtcars, layout = "br")

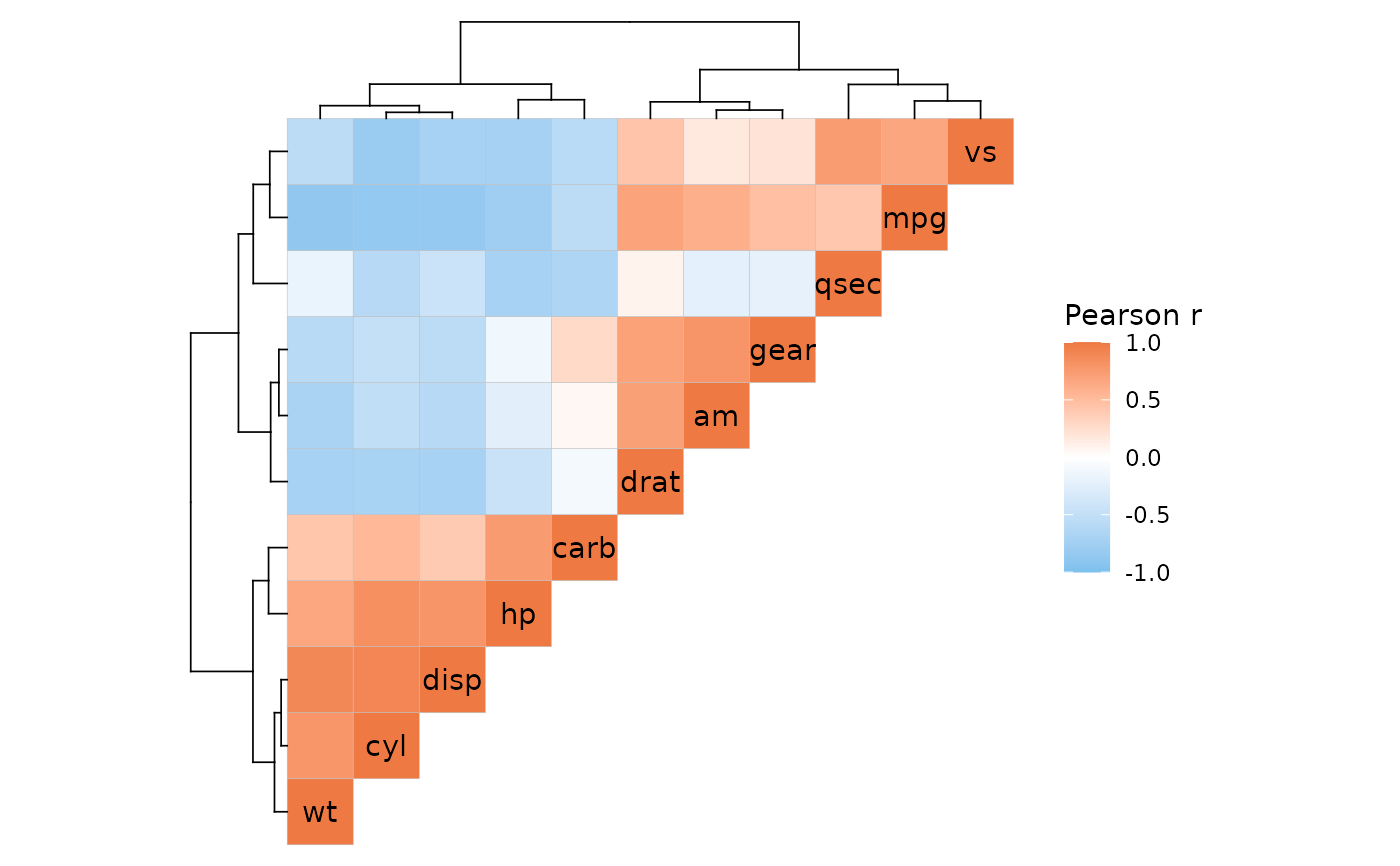

# With clustering
ggcorrhm(mtcars, layout = "tl", cluster_rows = TRUE, cluster_cols = TRUE)

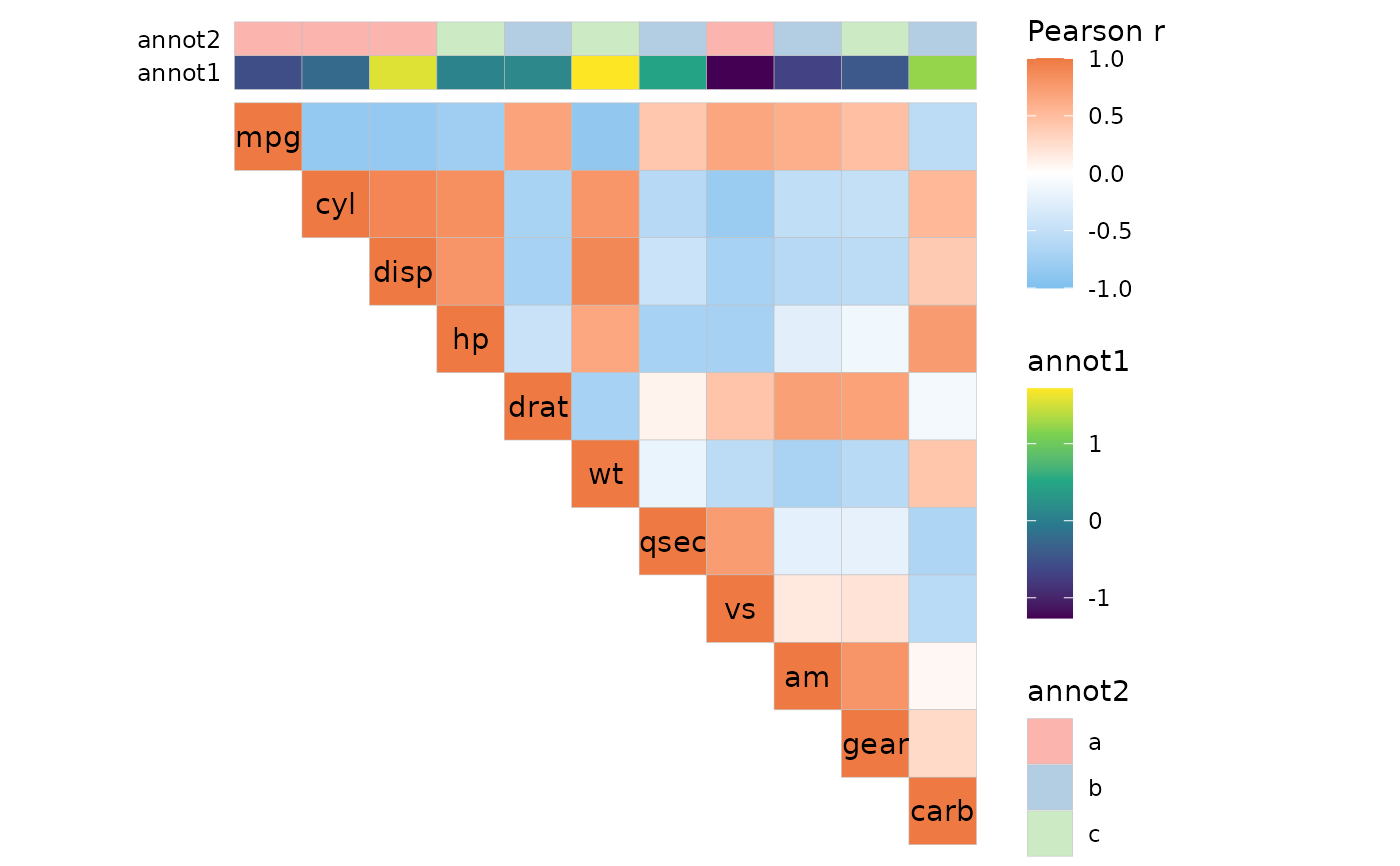

# With annotation
set.seed(123)
annot <- data.frame(.names = colnames(mtcars),
                    annot1 = rnorm(ncol(mtcars)),
                    annot2 = sample(letters[1:3], ncol(mtcars), TRUE))
ggcorrhm(mtcars, layout = "tr", annot_cols_df = annot)

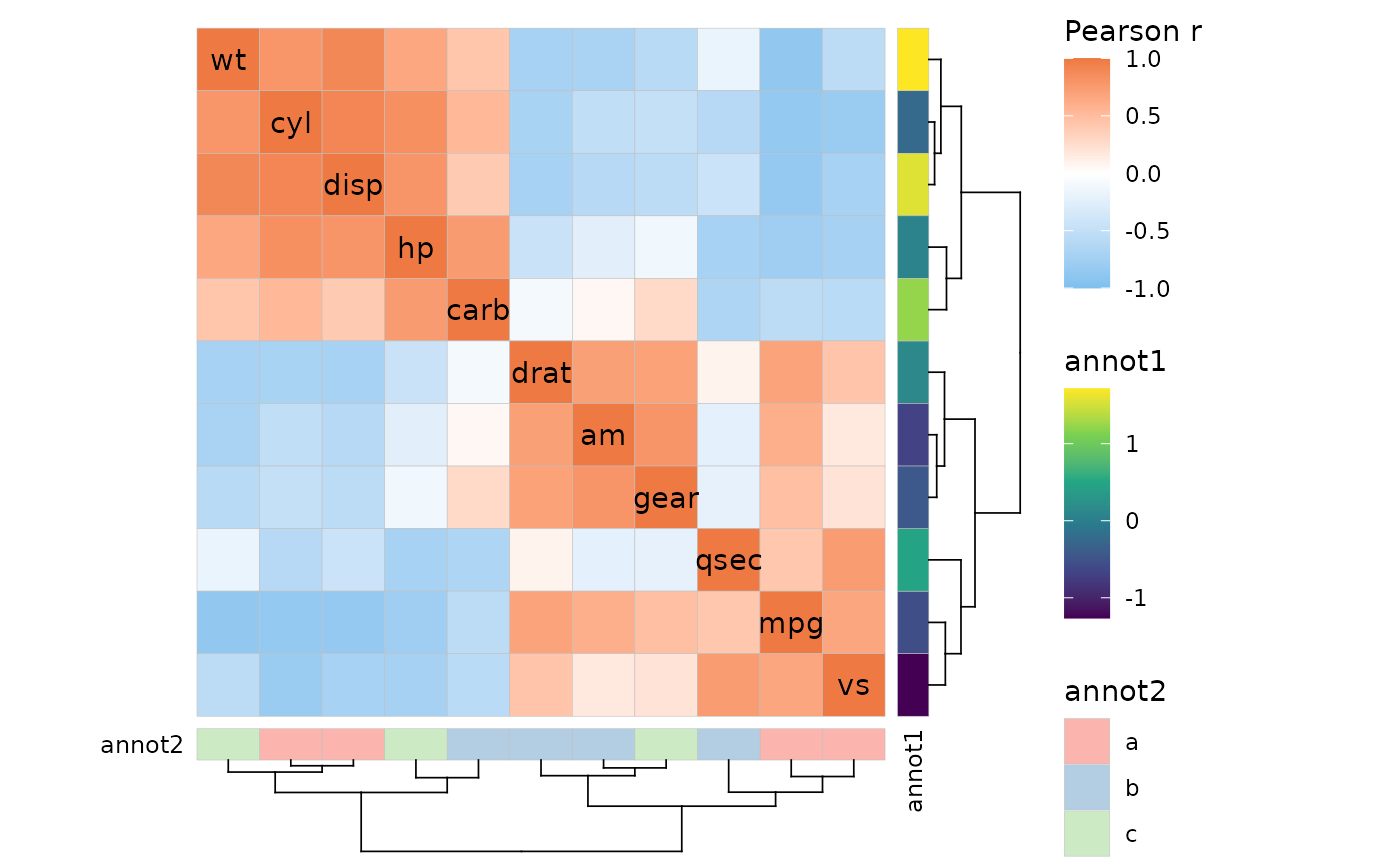

# Both
ggcorrhm(mtcars, layout = "full", cluster_rows = TRUE, cluster_cols = TRUE,
         annot_rows_df = annot[, -3], annot_cols_df = annot[, -2])


# Mixed layout
ggcorrhm(mtcars, layout = c("tl", "br"))

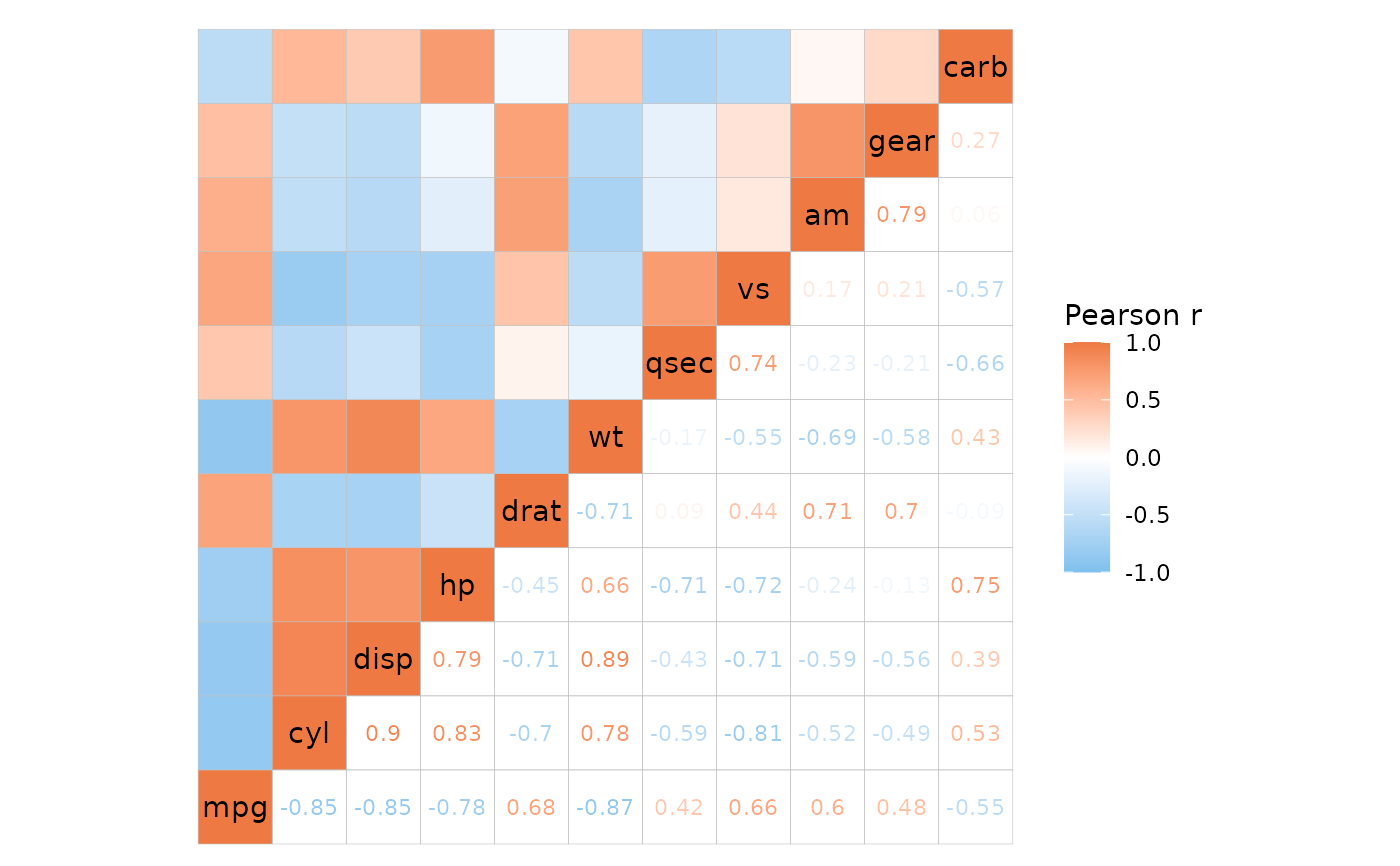

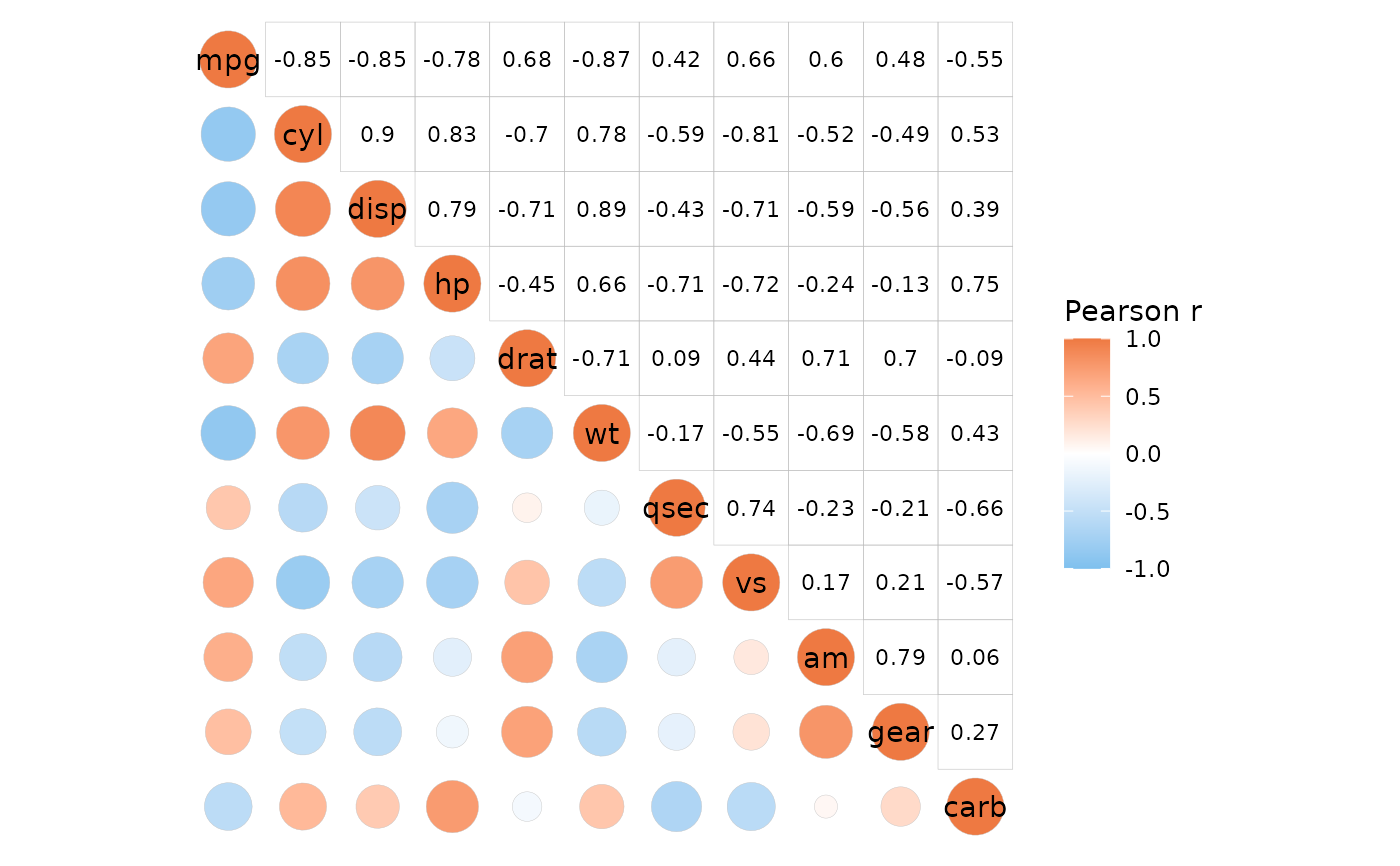

# Using different plotting modes
ggcorrhm(mtcars, layout = c("bl", "tr"), mode = c("21", "none"),
         cell_labels = c(FALSE, TRUE))

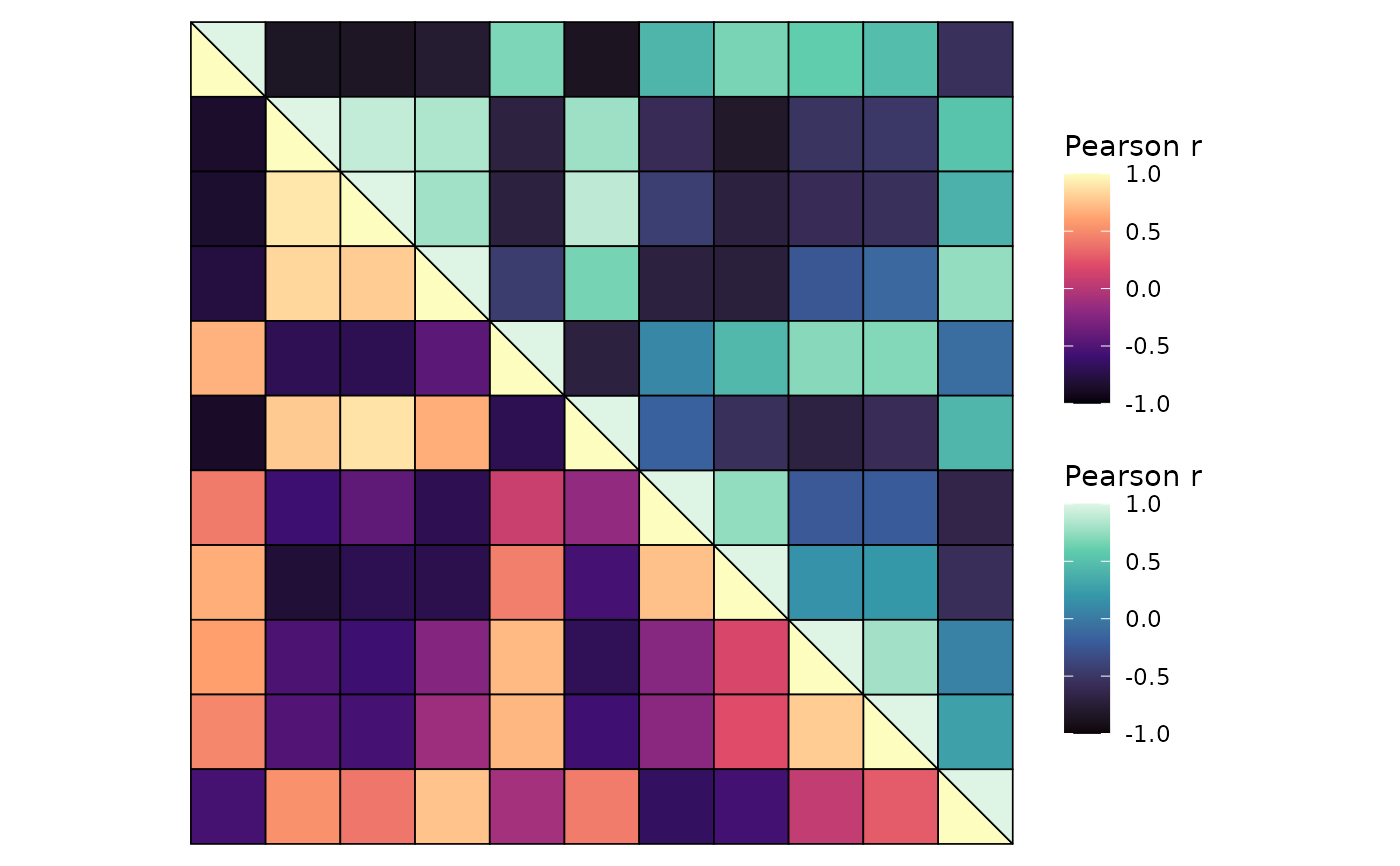

# Different colour scales and split diagonal
ggcorrhm(mtcars, layout = c("bl", "tr"), mode = c("hm", "hm"),
         col_scale = c("A", "G"), split_diag = TRUE,
         show_names_diag = FALSE, border_col = 1, border_lwd = 0.3)
